Messenger: for flat, laser and security information

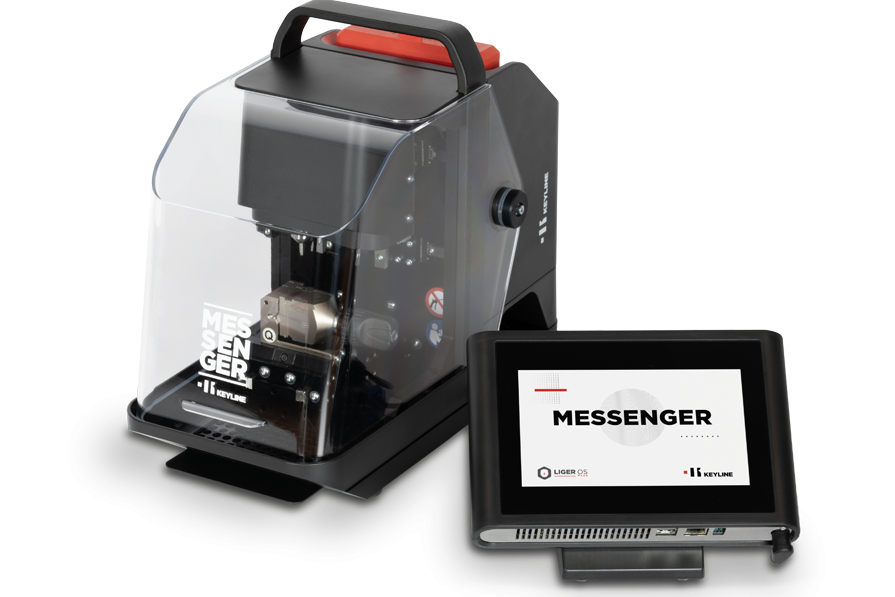

Messenger is the Keyline mobile phone duplicator, dedicated to flat, laser and security keys. It is a simple and compact machine.

It is managed via an App that allows you to decode and copy files. Thanks to its performance and the possibility of being powered by battery, it can be used in any type of situation. With Messenger you can offer the duplication service of automotive and residential vehicles in any location.

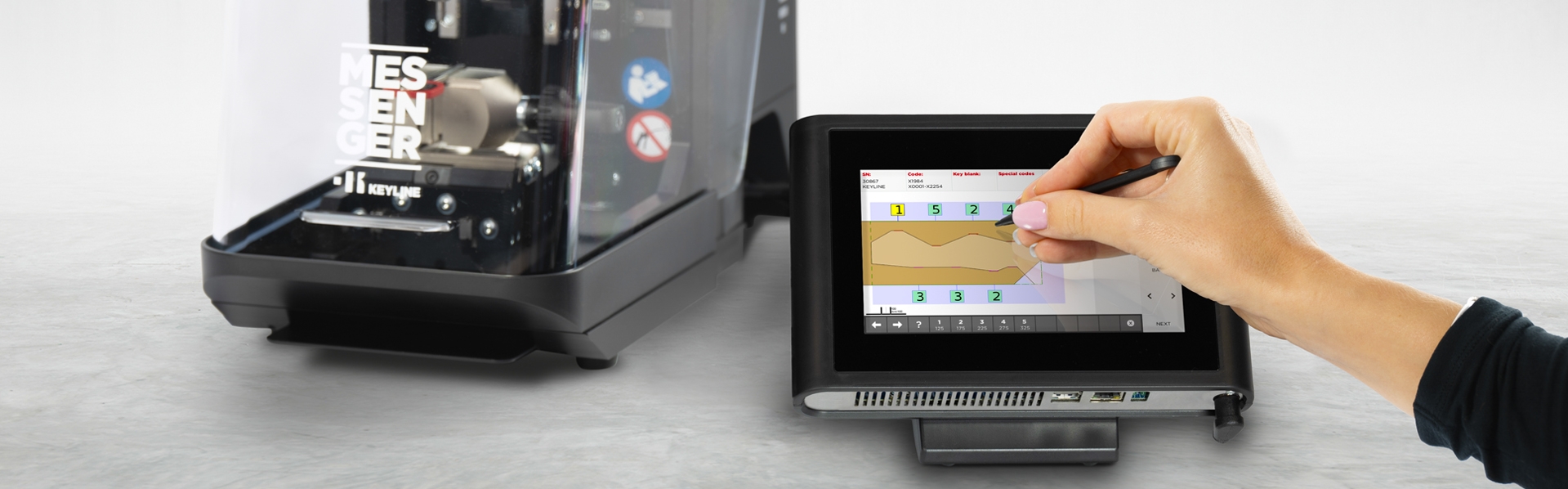

It's very easy to use. Therefore, the user can control all the functions of the machine through the KDT application, which can be used with a smart phone or Android tablet. The application has been updated with many new features, a new graphic interface and a complete database of automotive and residential vehicles.

The record duplicator is designed for any type of user who needs to duplicate records in the brand. All components, hardware and software, were developed by the Keyline I+D team.

¿Qué está incluido?

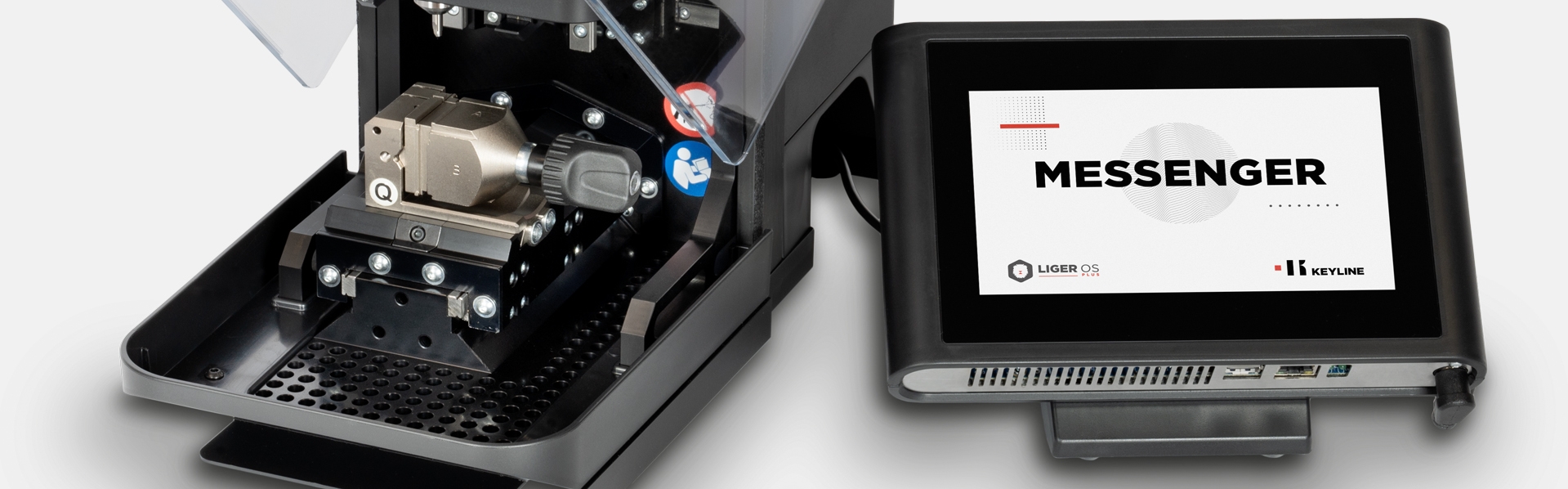

Messenger attaches with 2 new bits:

The Q bite, for laser and safety purposes; an innovation in the world of duplication: with a single bite it is possible to cut a large variety of residential items.

The clamp N for vehicle planes (with symmetrical cut on both sides without the need to turn the vehicle)

https://keyline-usa.com/images/app/keycoin.jpg

power_supply

Alimentación

Máquina: 48V DC - 2.5 Amp o fuente de alimentación de batería externa 36V
absorption

Absorción

120W (6W en stand-by)
external_connections

Conexiones externas

Bluetooth
dimensions

Medidas

Ancho: 200 mm (7,8”) / Profundidad: 395 mm (15,5”) / Altura: 310 mm (12,2”)
cutter

Fresa

V037 Widia ø 2,0 mm para llaves automotrices cortadas con láser y cantos; V001 Widia 90° para llaves de seguridad
lighting

Iluminación

LED - bahía de corte iluminada
clamps

Mordazas

Abrazadera Q para llaves láser y de seguridad / Abrazadera N para llaves automotrices de canto
motor

Motor

Sin escobillas
movements

Movimientos/ejes

3 ejes, guiados por motores paso a paso con tornillo en forma de T y tuerca antiretroceso
weight

Peso

Cuerpo de la máquina 10 Kg (22 lbs)
key_reading

Sistema de lectura llave

Contacto eléctrico
cutter_speed

Velocidad fresa

10000 rpm (7500 rpm con la fuente de alimentación de la batería); velocidad variable para materiales específicos 120W (6W en stand-by)
