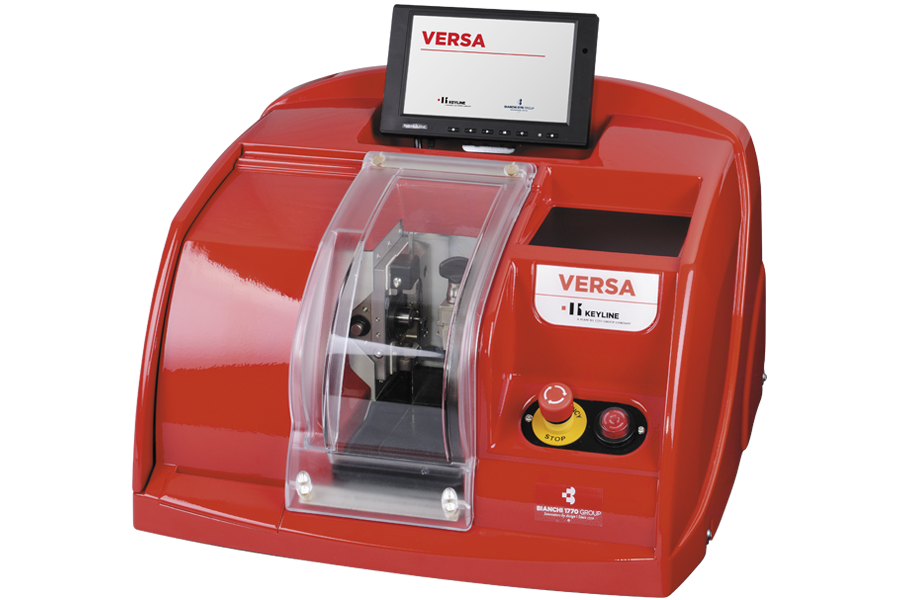

The ultimate locksmith's utility machine, the Versa cuts by code, decode or depths and duplicates high security and dimple keys. The Versa also engraves metal head keys to your specifications.

  • Complete database of codes built in or can be used in conjuction with Instacode software;

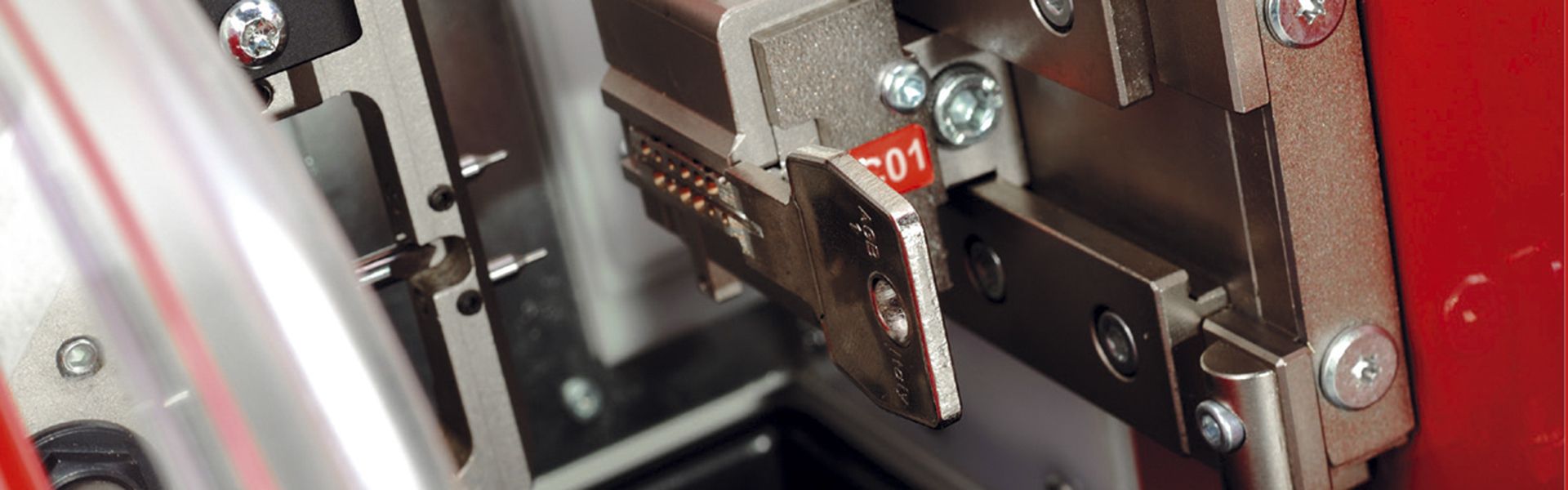

  • Includes four jaws: A01, A02, A03 for high security keys and C01 for dimple keys and engraving;
  • Duplicates keys in seconds with 28,000 rpm industrial-type spindle;

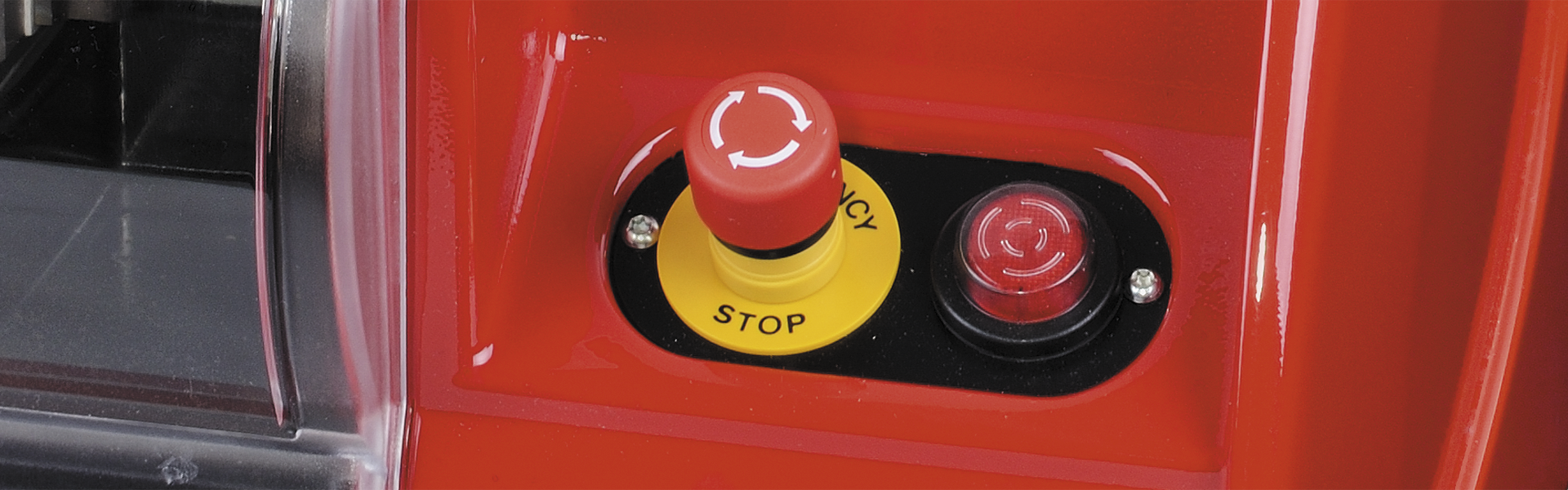

  • Protective safety cover must be closed for machine to operate;
  • Engraving feature to personalize key heads;
  • Special order;
  • Warranty: 2 years.

Available downloads

power_supply

Power supply

90-130V 50-60Hz / 220-240V 50-60Hz

absorption

Absorption

230W

external_connections

External connections

2 USB ports, 1 LAN/Ethernet, 2 RS232 serial ports (9 pin), 1 VGA socket (for touch screen/video display)

dimensions

Dimensions

20” x 17” x 15”

electronic_equipment

Electronic equipment

Mainboard with 600MHz CPU GEODE, 512MB RAM, static memory on 4GB compact flash, high resolution axis control

cutter

Cutter

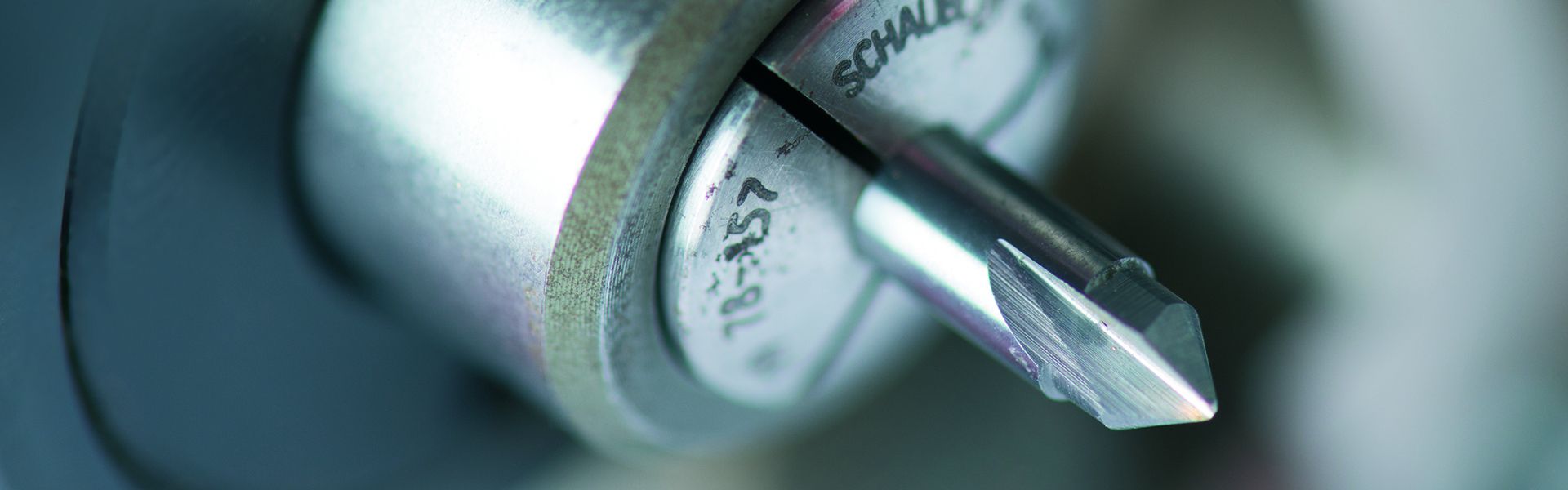

2.5mm carbide cutter, 90 degree carbide

user_interface

User interface

7” industrial color touch screen, 16:10, resolution 800x480 px, VGA

clamps

Clamps

Standard equipment includes 4 basic clamps: A01, A02, A03 for laser keys; C01 for dimple keys and key head engraving

motor

Motor

Brushless

movements

Movements/axes

3 axis, guided by stepper motors through linear moves

weight

Weight

82 lbs.

cutter_speed

Cutter speed

28,000 rpm
