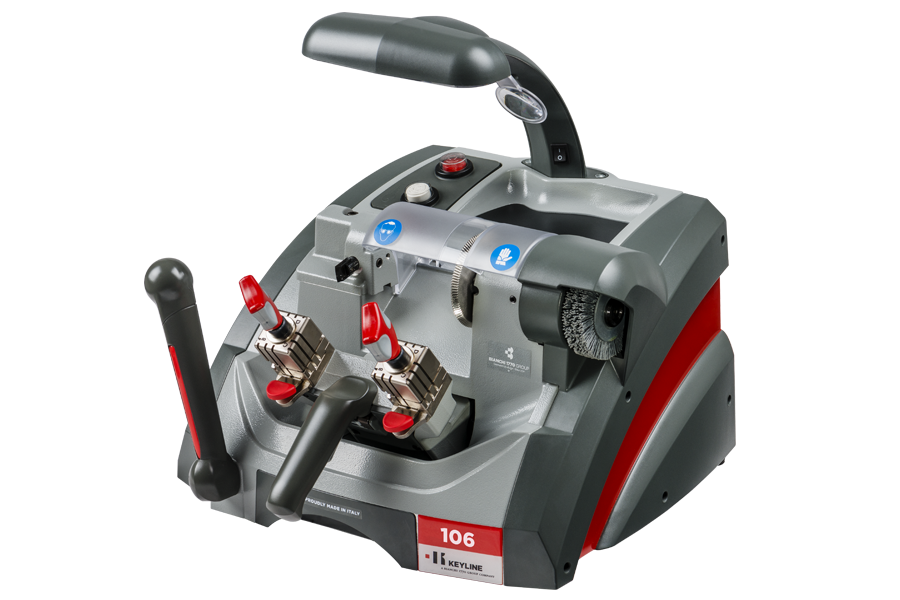

The 106 semi-automatic is a heavy-duty, quality duplicator and features several upgrades such as built-in chip tray, magnifying glass, jaw locking mechanism and independent brush button and light switch.

  • Microswitch activation with improved spring loaded carriage design, ergonomic handles and smooth balanced operation;

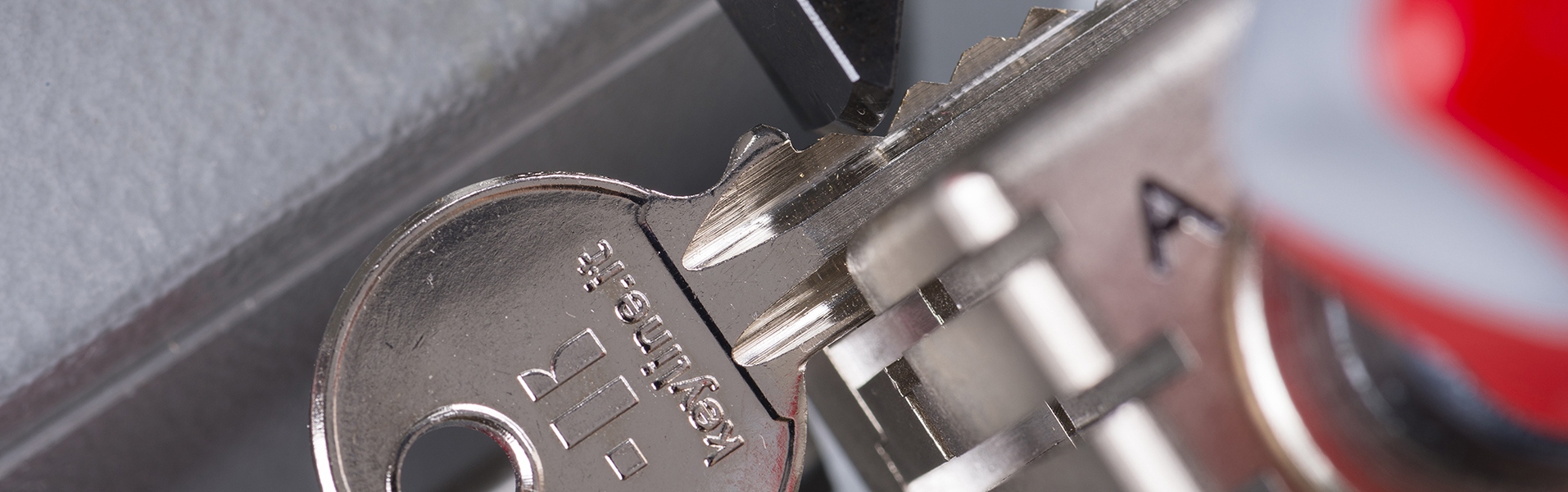

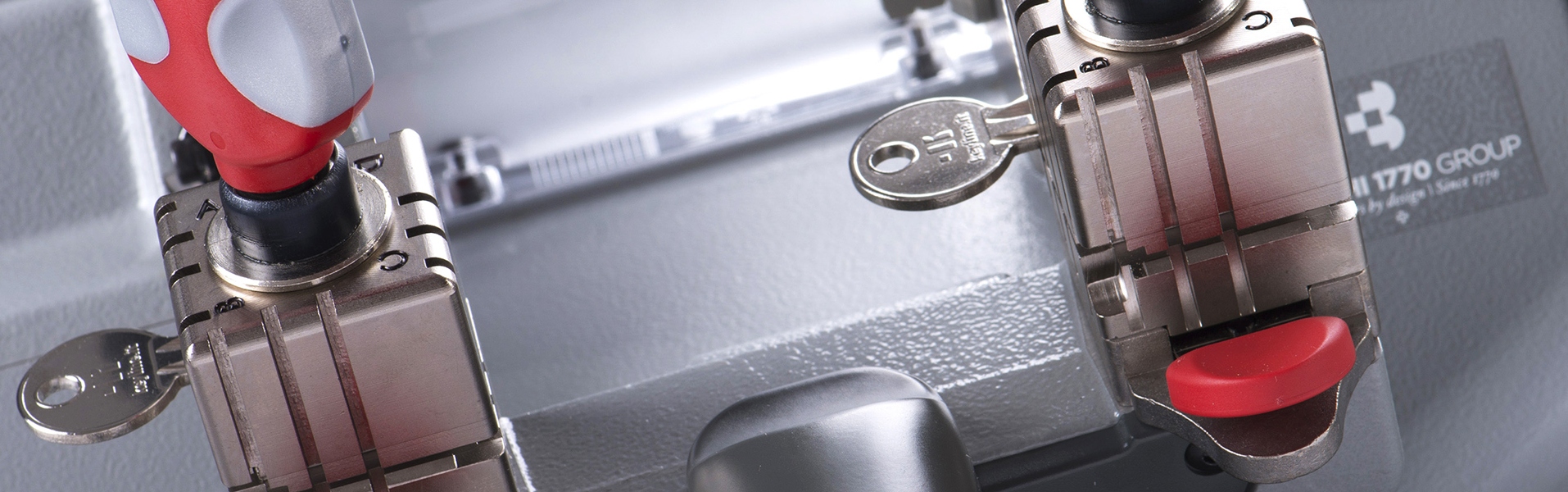

  • Four-way reversible jaws securely clamp residential, commercial, padlock and automotive keys including single and double sided versions;
  • Heavy-duty cast iron body dramatically reduces vibration and noise improving both cut consistency and cutter life;
  • Micrometric tracer adjustement for quick, easy and accurate depth calibration;
  • Redesigned cutter blade features a steeper angle cut to better cut specific keys like Titan, Best and older style GM keys;
  • Also available in a carbide cutter version.



power_supply

Power supply

110V/60Hz
dimensions

Dimensions

18” x 15” x 17”
cutter

Cutter

80mm HSS
lighting

Lighting

Neon
clamps

Clamps

4-sided
motor

Motor

Asynchronous, one speed, 0.25 KW
weight

Weight

55 lbs.

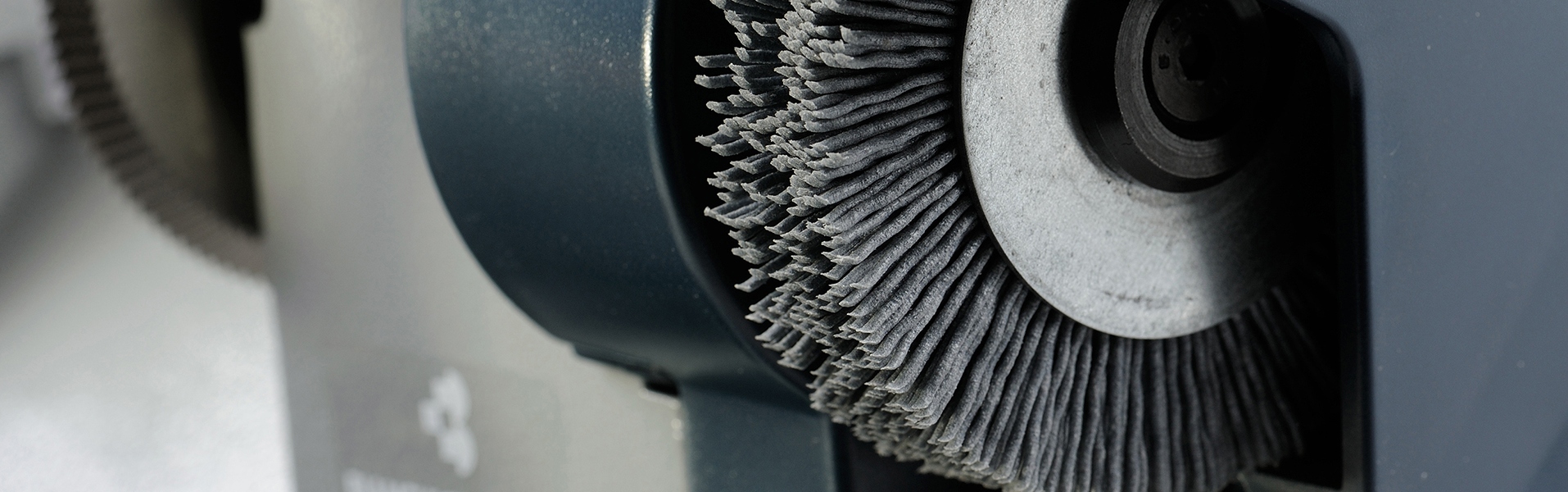

brush

Brush

Tynex
cutter_speed

Cutter speed

640 rpm (1400 rpm-carbide cutter version)

Keyline 106 | Double-sided edge cut keys

  Learn how to duplicate Double-sided edge cut keys with Keyline 106.

Keyline 106 | Edge cut cylinder keys

Learn how to duplicate edge cut cylinder keys with Keyline 106.

Keyline 106| Tip stop double-sided edge cut keys

Learn how to duplicate Tip stop double-sided edge cut keys with Keyline 106.
