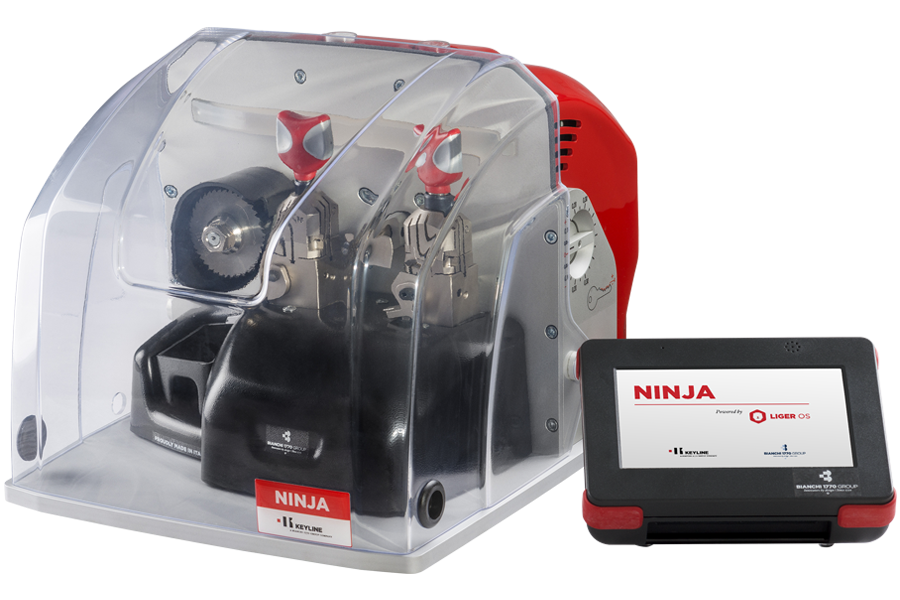

Ninja is the first and only compact, high precision key cutting machine for single-sided and double-sided flat keys, with code cutting, duplication and decoding functions.

Its compact dimensions and attractive design make it appropriate for all work environments, from the most complete and professional establishments to small shops requiring an optimal use of space.

  • Complete database of codes built-in, no computer needed;
  • Multiple user management, saving of cut keys, customer database storage and customized data import;
  • Works with Instacode and Promaster;

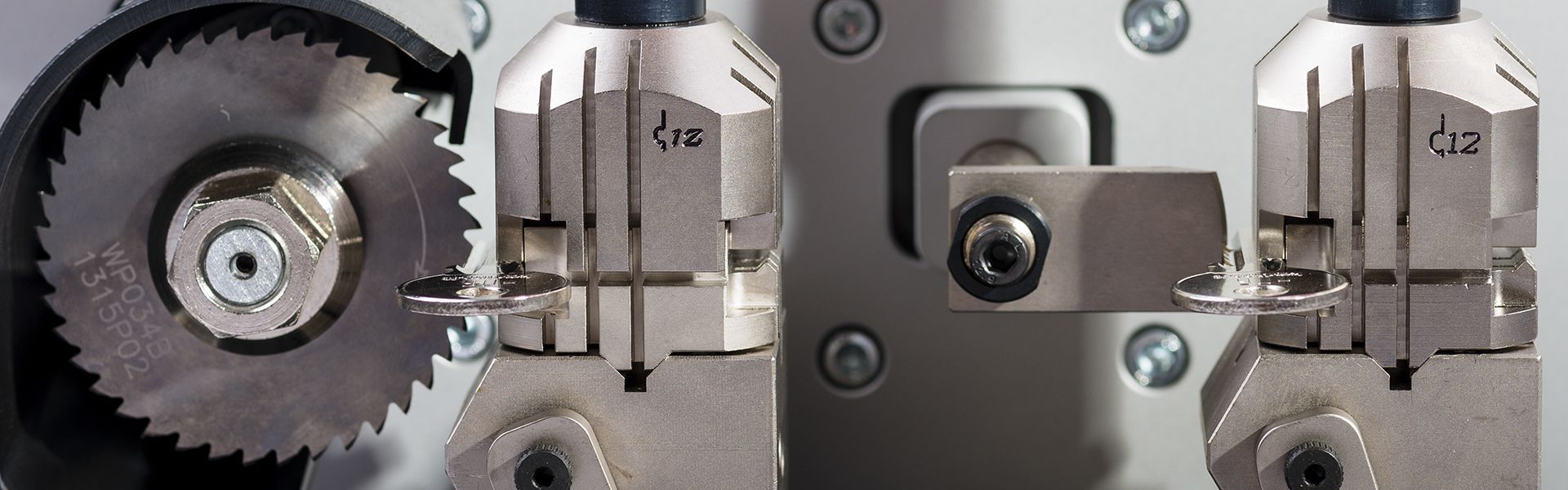

  • 4-way reversible jaws;
  • Large transparent cutter shield is microswitch activated; cutter motor only starts when cover is closed;
  • Warranty: 2 year.
power_supply

Power supply

90-130V 50-60Hz / 220-240V 50-60Hz
absorption

Absorption

250W (35W in stand-by)
external_connections

External connections

2 USB (2.0) ports, 1 LAN port, 2 RS232 serial ports
dimensions

Dimensions

12” x 15 3-4” x 12”
electronic_equipment

Electronic equipment

Mainboard with ARM Cortex A8 CPU, 512MB RAM, static memory on 4GB compact flash, high resolution axis control
cutter

Cutter

63mm carbide cutter
lighting

Lighting

LED
clamps

Clamps

4-sided
motor

Motor

Asynchronous, .18 KW
weight

Weight

44 lbs.
cutter_speed

Cutter speed

1500-3000 rpm (variable speed according to programs)
