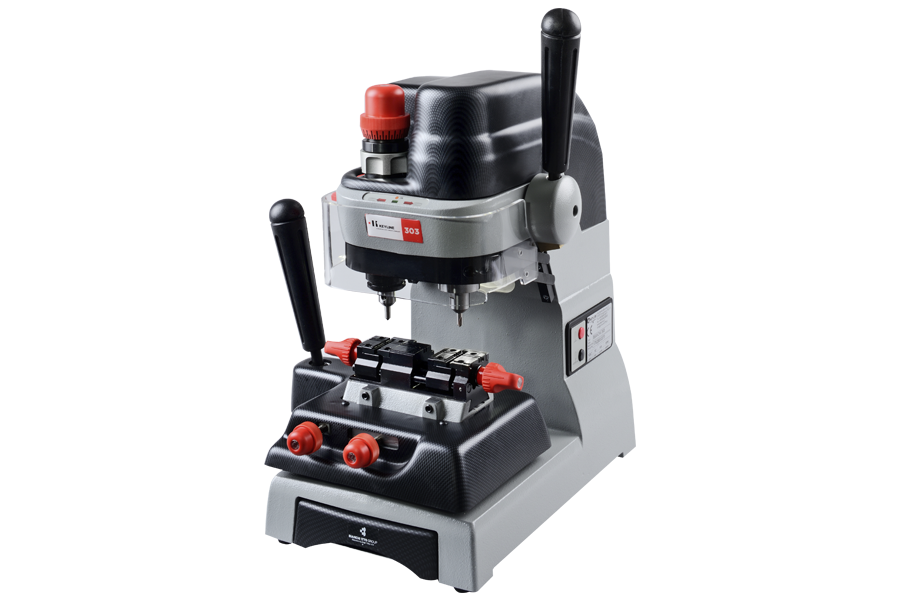

The 303 duplicates high security laser and dimple type keys. Its robust constructions and innovative design result in an extremely durable, precise and easy to use machine.

  • Microswitch activated cutter start with vertical and lateral carriage locking system to ease the cutting process;
  • One-piece cast-iron body reduces vibration and noise improving both cut consistency and cutter life;

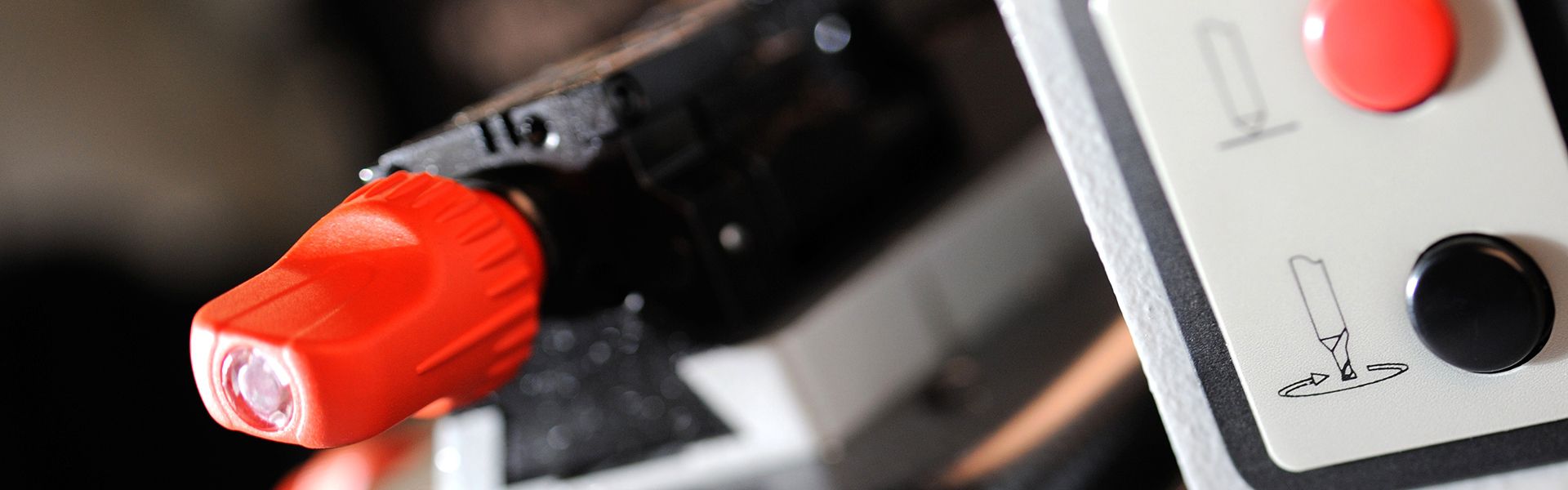

  • Dual mode system; red button calibrates, black button cuts;
  • Large, full view coverage shield for improved visibility and reduction of key shaving dispersal;
  • Three dimensional calibration results in greater cut accuracy; machine beeps when calibrated correctly;
  • Electronic height adjustment with directional indicator;
  • Removable faceplates;

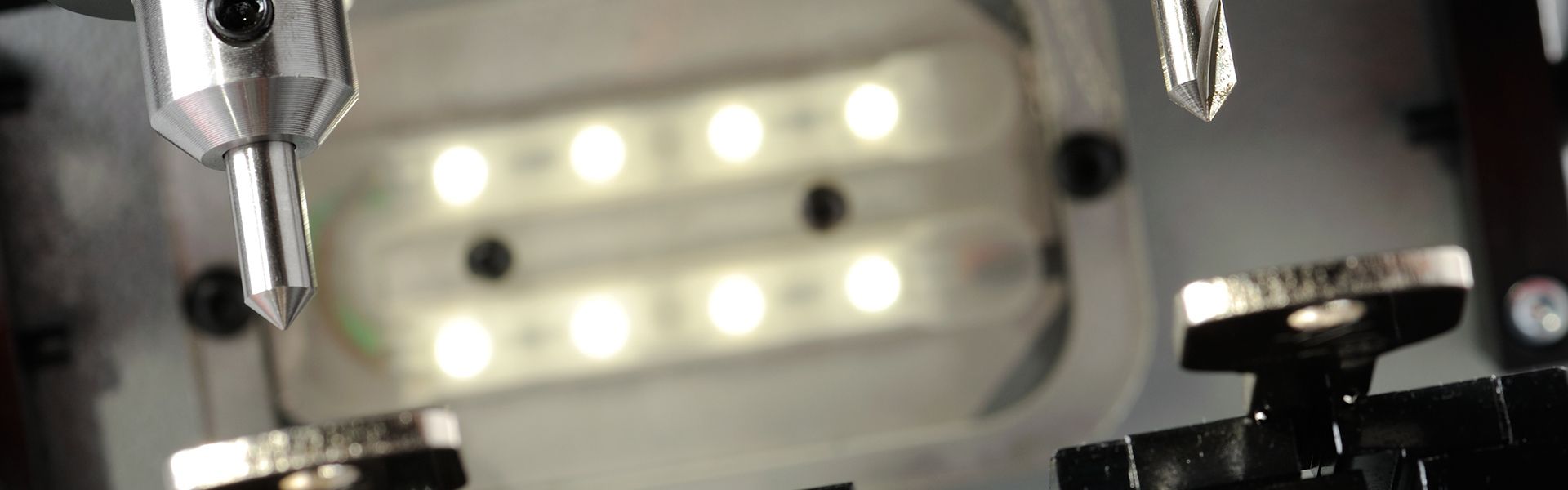

  • Long-lasting and bright LED-style light;
  • Storage tray at the base of the machine for tools, keys, etc.;
  • Optional equipment; Mercedes 2-track adapter set, Audi/VW adapters and dimple cutter and tracer set.

Available downloads

power_supply

Power supply

110V/60Hz

absorption

Absorption

200W

dimensions

Dimensions

12” x 15” x 21”

cutter

Cutter

2.5mm and 3mm

lighting

Lighting

LED

clamps

Clamps

Fixed, with removable faceplates

motor

Motor

Asynchronous, one speed

movements

Movements/axes

3 axis

weight

Weight

51 lbs.

tastatore

Tracer point

2.5mm and 3mm

cutter_speed

Cutter speed

6,000 rpm

accessories

Accessories

MA Audi/VW Adaptador
MM Mercedes 2-Track Adaptador

Keyline 303 | Laser keys with adaptor for Volkswagen and Audi profiles

Learn how to duplicate Laser keys with adaptor for Volkswagen and Audi profiles with Keyline 303.

Keyline 303 | Dimple keys

Learn how to duplicate dimple keys with Keyline 303.

Keyline 303 | Laser keys

Learn how to duplicate Laser keys with Keyline 303.
