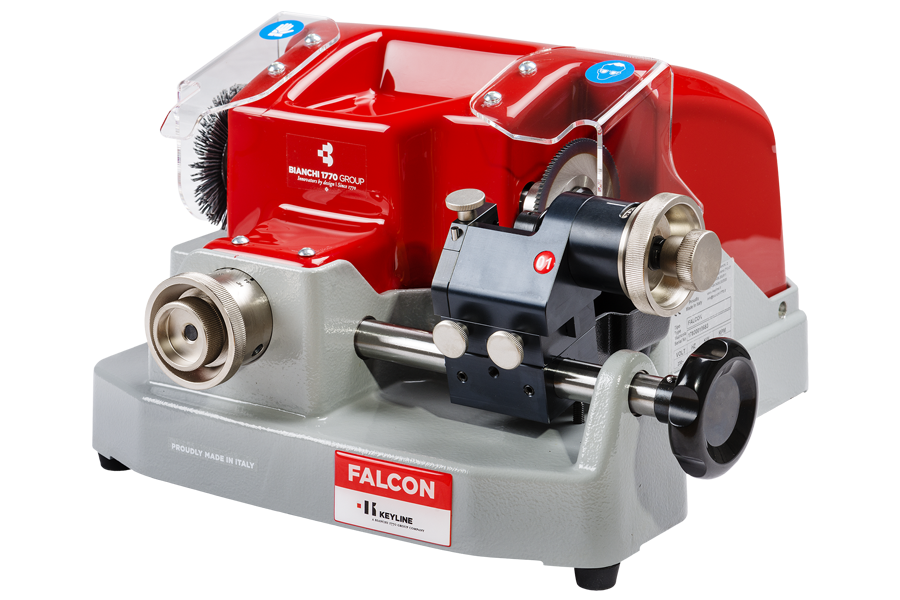

The Falcon is a manual key machine designed specifically to cut Ford and Jaguar Tibbe keys by code - with additional jaws available for Abus and Abloy high security keys.

  • Manual code machine for 6-cut and 8-cut Tibbe style keys;
  • Integrated adaptor allows for 360 degree key rotation;

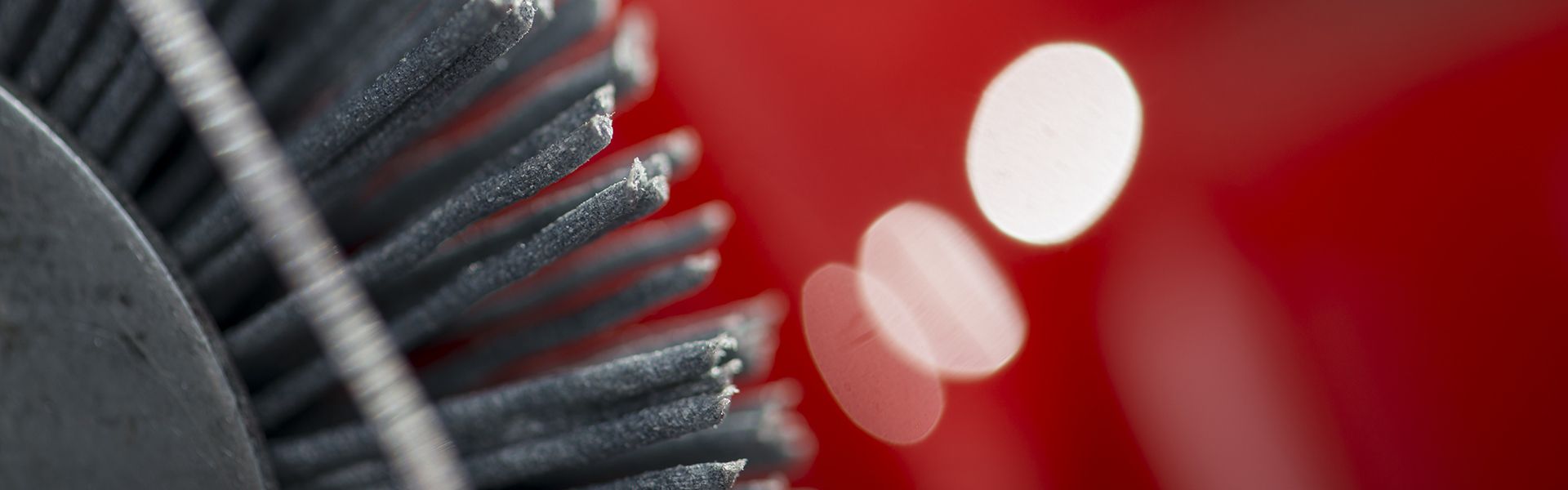

  • Independent soft touch deburring brush;
  • Microswitch activated cutter start and stop provide additional user safety.

Available downloads

Supported keys

power_supply

Power supply

110V / 60Hz

absorption

Absorption

200 W

dimensions

Dimensions

15 3/4" x 14 1/2" x 9"

cutter

Cutter

80 mm HSS

clamps

Clamps

Includes Abus (02) and Abloy (03). Additional clamps for specific markets are available on request.

motor

Motor

Asynchronous, one speed

movements

Movements/axes

2 axis

weight

Weight

38 lbs.

brush

Brush

Tynex

tastatore

Tracer point

Cut by code

cutter_speed

Cutter speed

1500 rpm
