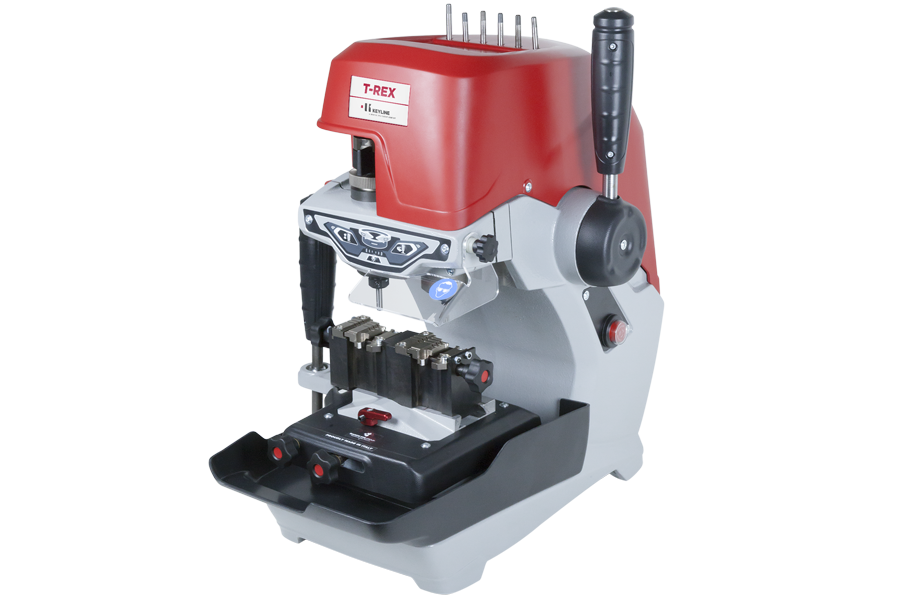

T-Rex is a mechanical key cutting machine for laser, dimple and tubular keys. It is ideal for specialists needing a professional and versatile solution to integrate their key cutting capabilities.

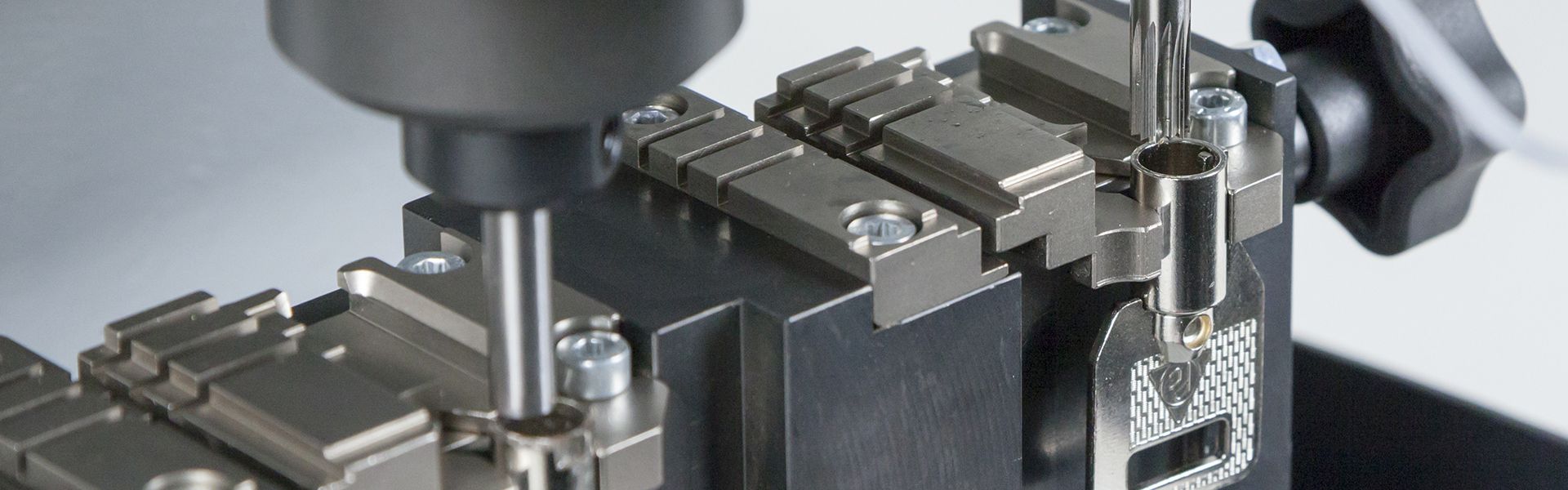

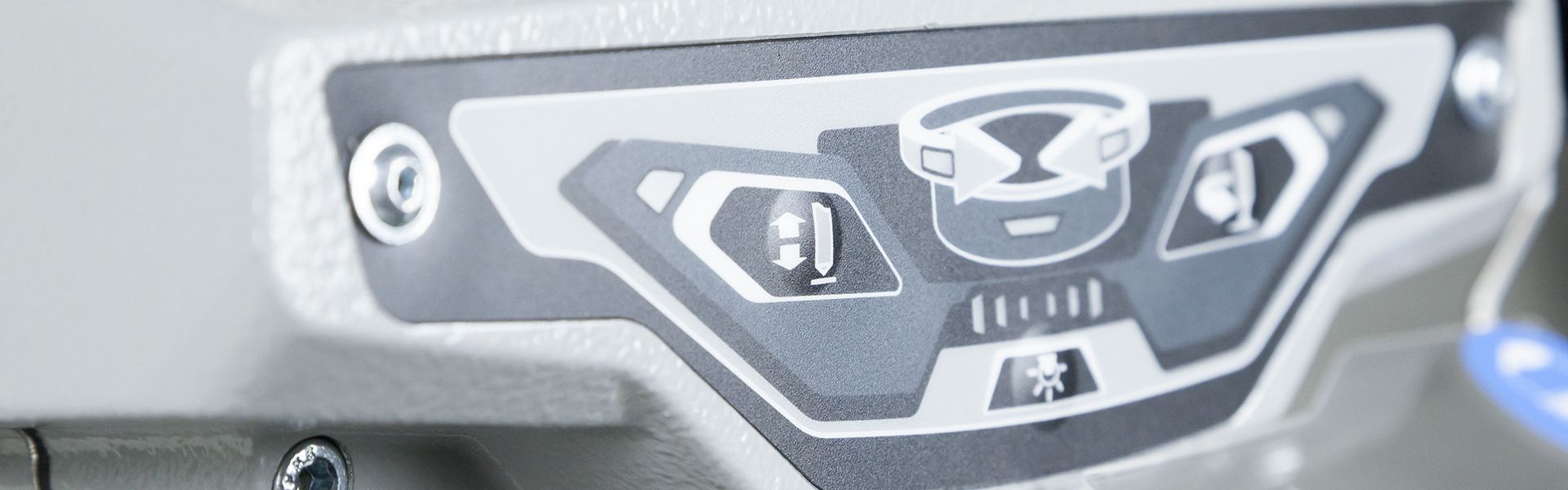

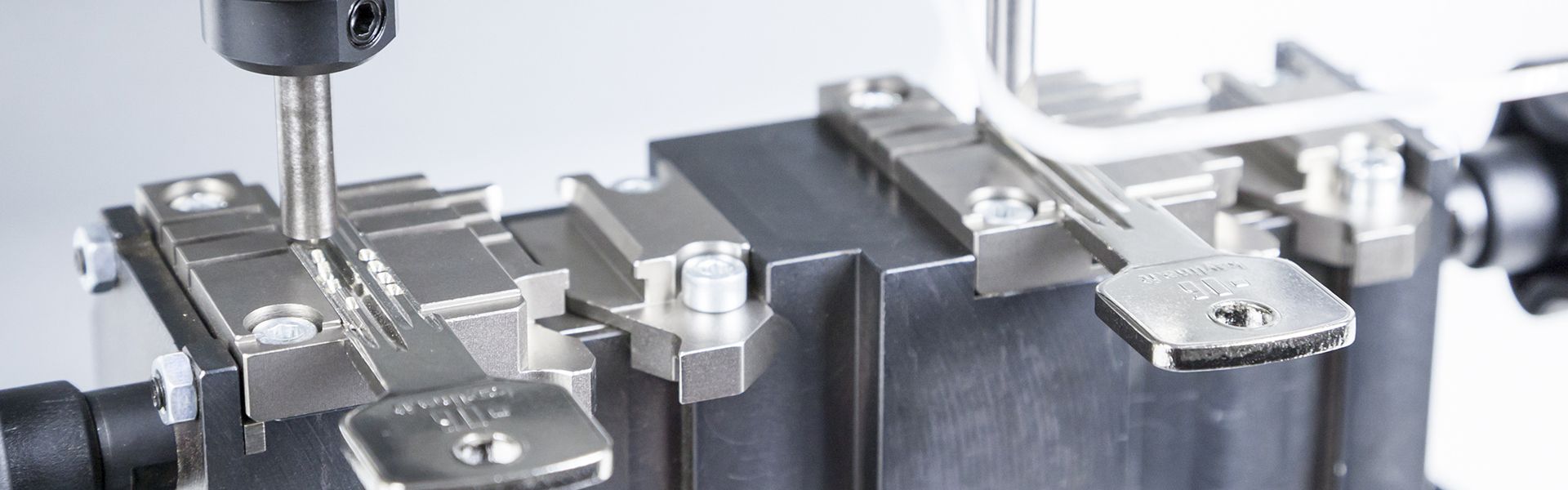

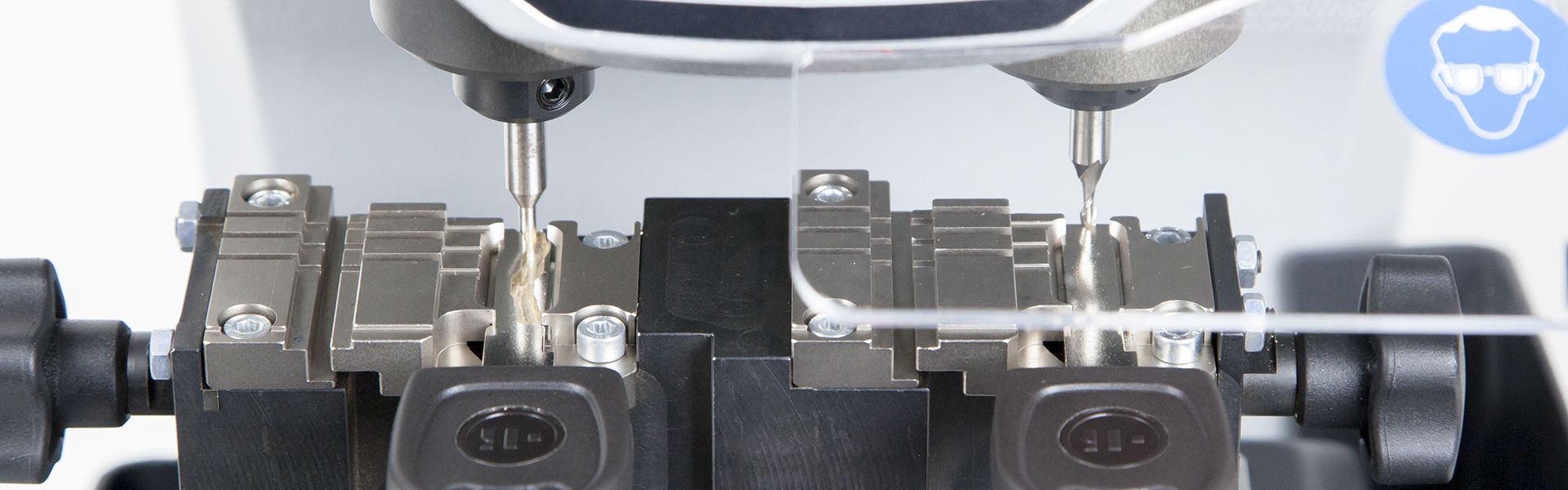

Practical and fast. The innovative clamp mounted on the T-Rex ensures a high clamping structure for standard, Cisa®, VAG, and tubular keys and for a wide variety of other key types, for a total of three available bays and the need for adapters reduced to a minimum. The T-Rex is also equipped with an led panel with buttons and arrow keys to facilitate the calibrating and cutting operations.



Maximum safety. The electromechanical calibration function with visual and audible checking, together with the large chip drawer and the automatic stop and accidental start prevention systems of the motor guarantees the complete safety of every process. The whole working area is lighted by special led lights that prevent any reflected glare.



Strong structure, fluid movements. Thanks to its structure with carriages moving along ball bearing guideways, vertical suspension for dimple keys and side suspension for laser keys, the T-Rex offers a completely vibration free and incredibly fluid performance in the cutting of keys.

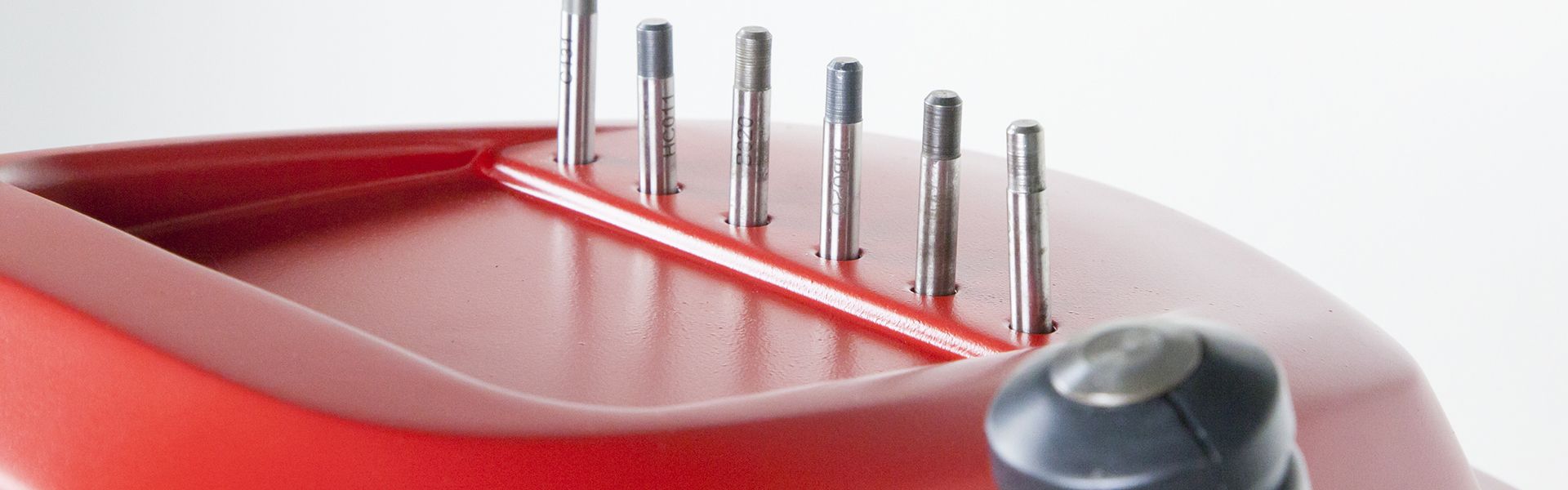

Ease of use. The system of ergonomic levers and knobs, the wide platform, the excellent visibility of the working area and the integrated cutting mills holder bay make T-Rex exemplary in terms of ergonomics and efficiency of use.



power_supply

Power supply

230V 50Hz / 110V 60Hz / 100V 50-60Hz

absorption

Absorption

200W

utensil_change

Tool exchange

Manual

dimensions

Dimensions

Width: 320 mm / Depth: 420 mm (with chip tray 475 mm) / Height: 490 mm

cutter

Cutter

HSS ø 6 mm

lighting

Lighting

LED

clamps

Clamps

Fixed with interchangeable tools

motor

Motor

Asynchronous; with 0.18kW speed

movements

Movements/axes

3 axes with sliding guides

weight

Weight

24 Kg

cutter_speed

Cutter speed

6000 rpm
