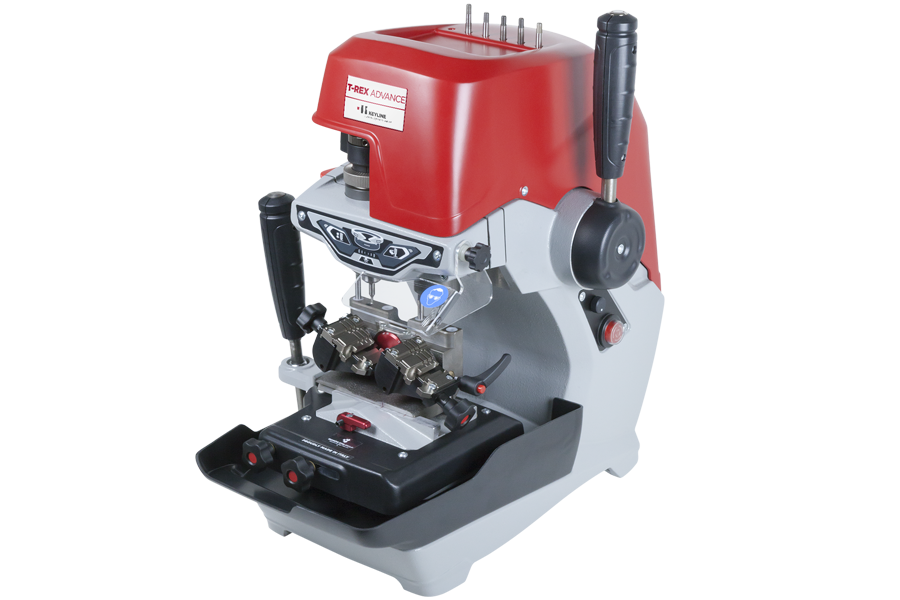

T-Rex Advance is the mechanical key cutting machine for laser, dimple and tubular keys whose performance is the gold standard, thanks to a perfect combination of mechanics, design and innovation. It is the ideal choice for mechanical key cutting perfection.

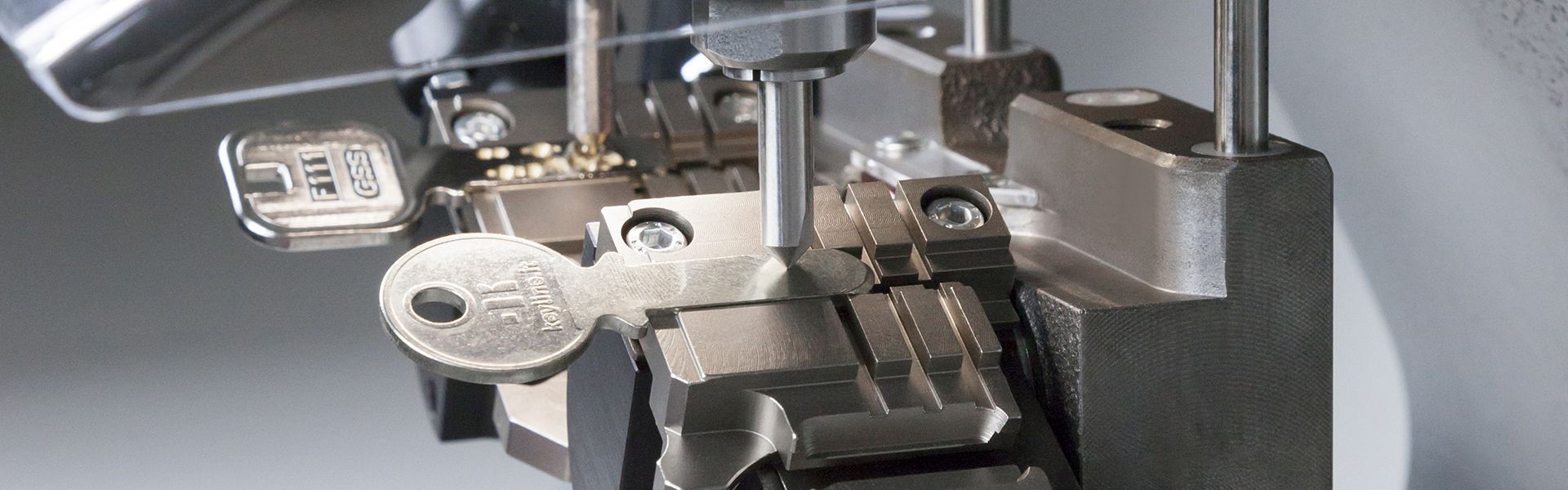

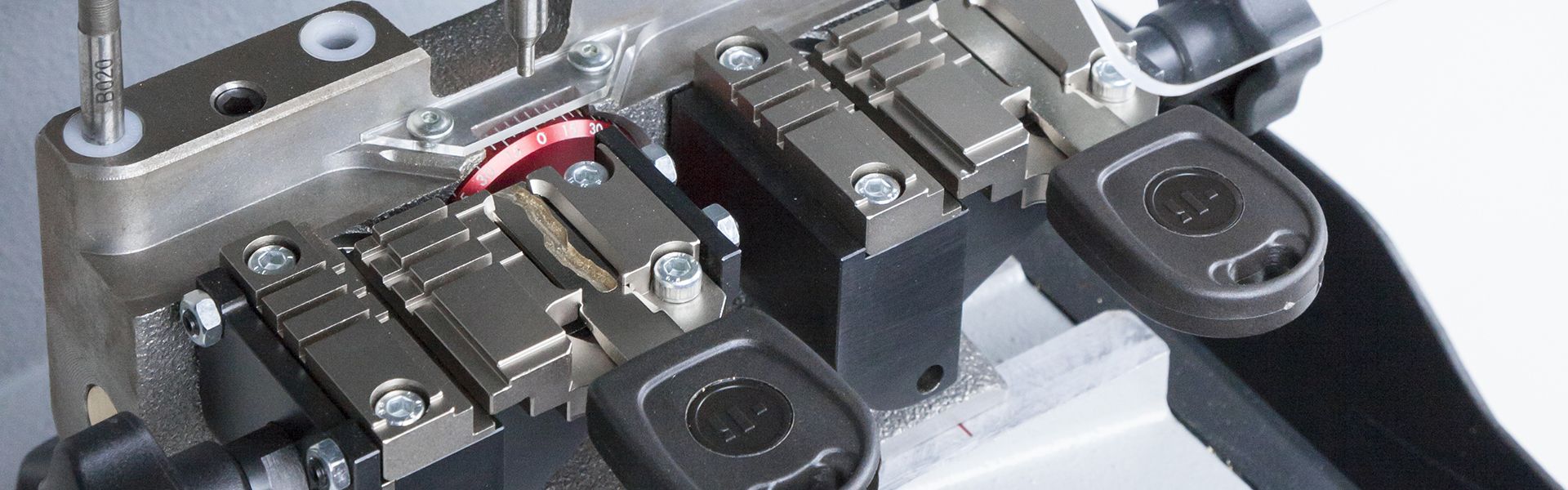

Versatile. The variable angle oscillating clamp allows the optimal positioning of dimple keys with flat and inclined bitting, without need of additional clamps and adapters. Moreover, it is also suitable for standard, Cisa®, VAG and tubular keys.
The cutting speed, from 6,000 to 12,000 revolutions per minute, makes it possible for the operator to adapt the cutting process according to the type of cutting mill installed and the type of material used for the key.



Maximum safety. The electromechanical calibration function with visual and audible check, together with the large chip drawer and the automatic stop and accidental start prevention systems of its motor guarantee the complete safety of every process. The whole working area is lighted by special LED lights that prevent any reflected glare.

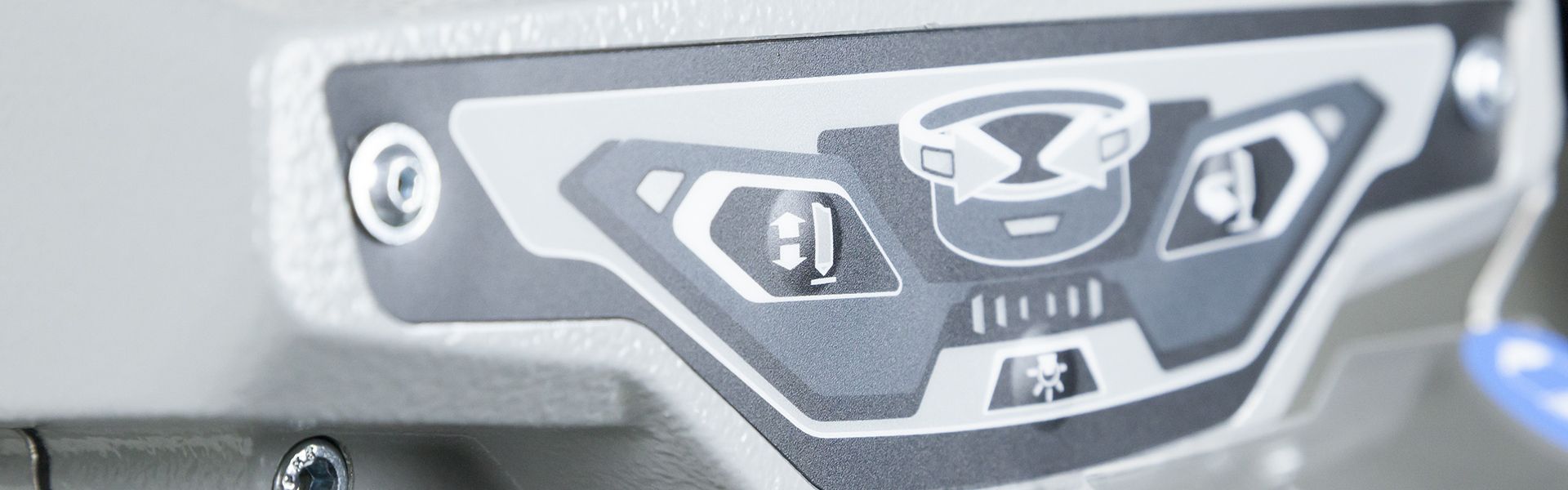

Strong structure, fluid movements. Thanks to its structure with carriages moving along ball bearing guideways, vertical suspension for dimple keys and side suspension for laser keys, the T-Rex Advance offers a completely vibration free and incredibly fluid performance in the cutting of keys. The T-Rex Advance is also equipped with an led panel with buttons and arrow keys to facilitate the calibrating and cutting operations.

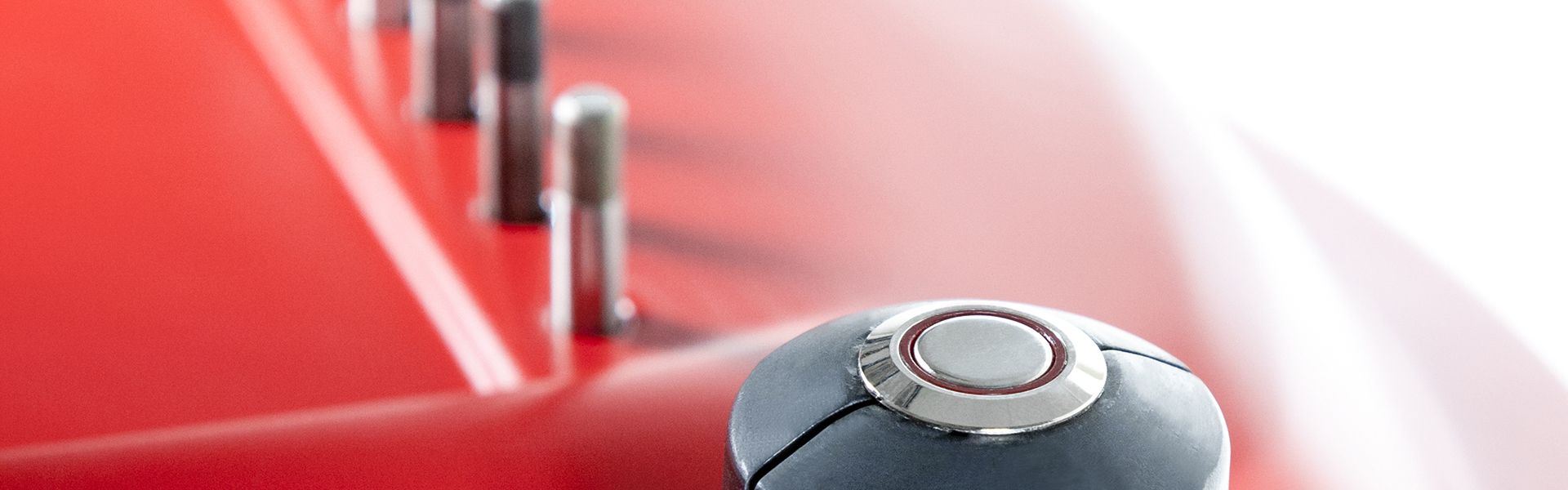

Ease of use. The system of ergonomic levers and knobs, the wide platform, the excellent visibility of the working area and the integrated cutting mills holder bay make T-Rex Advance exemplary in terms of ergonomics and efficiency of use.

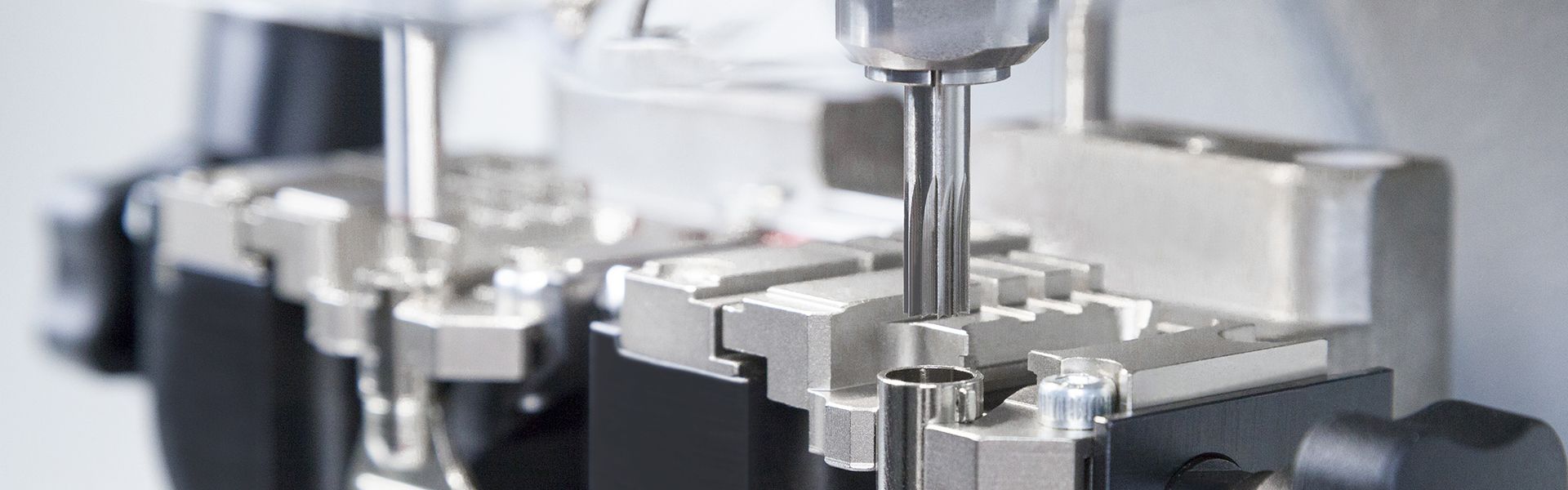

Innovative motorized tools positioning system, patent pending. The system makes changing the tools more efficient, without manual maneuvers, so that it is possible to start cutting a dimple and laser key immediately.



Domanda brevetto t-Rex Eng



Click here for more information!

power_supply

Power supply

230V 50Hz / 100V 50-60Hz

absorption

Absorption

300W

utensil_change

Tool exchange

Motorized

dimensions

Dimensions

Width: 320 mm / Depth: 420 mm (with chip tray 475 mm) / Height: 490 mm

cutter

Cutter

HSS ø 6 mm (optionals in Widia)

lighting

Lighting

Led

clamps

Clamps

Tilting with interchangeable tools

motor

Motor

Asynchronous; with 0.18kW variable speed

movements

Movements/axes

3 axes with sliding guides

weight

Weight

25 Kg

cutter_speed

Cutter speed

From 6000 rpm to 12000 rpm
