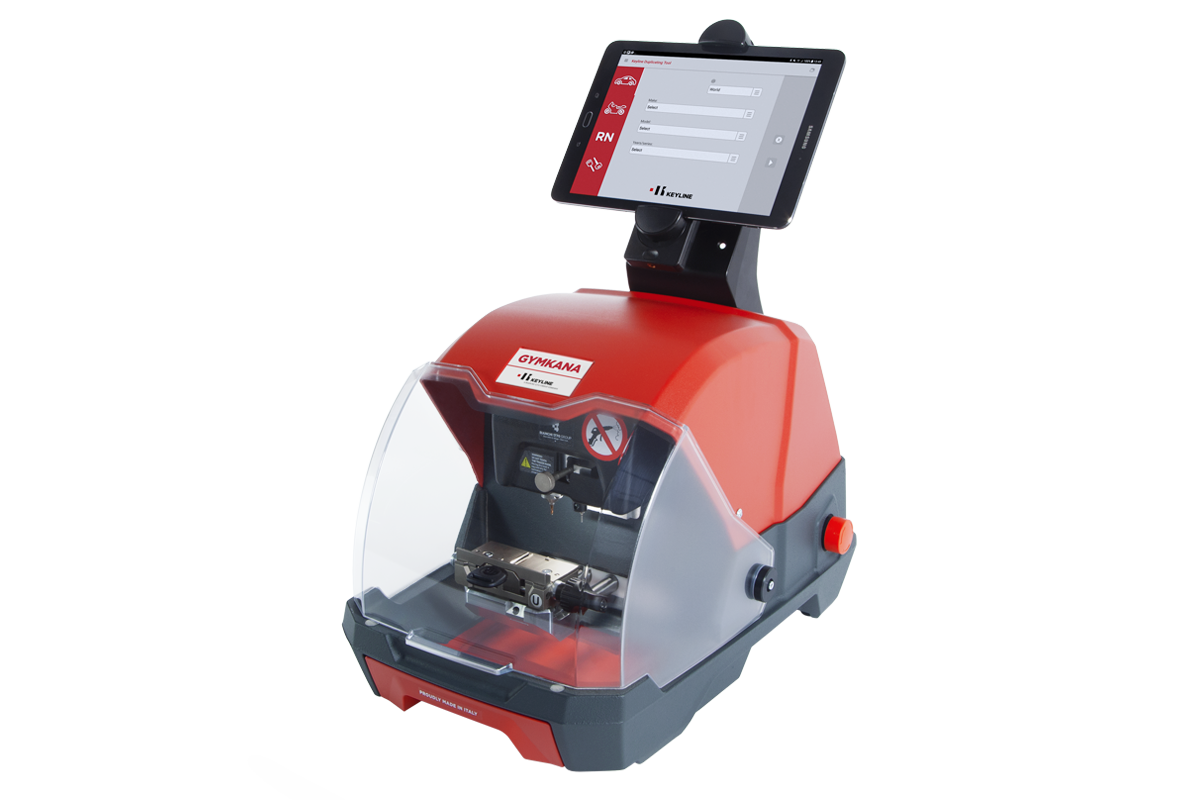

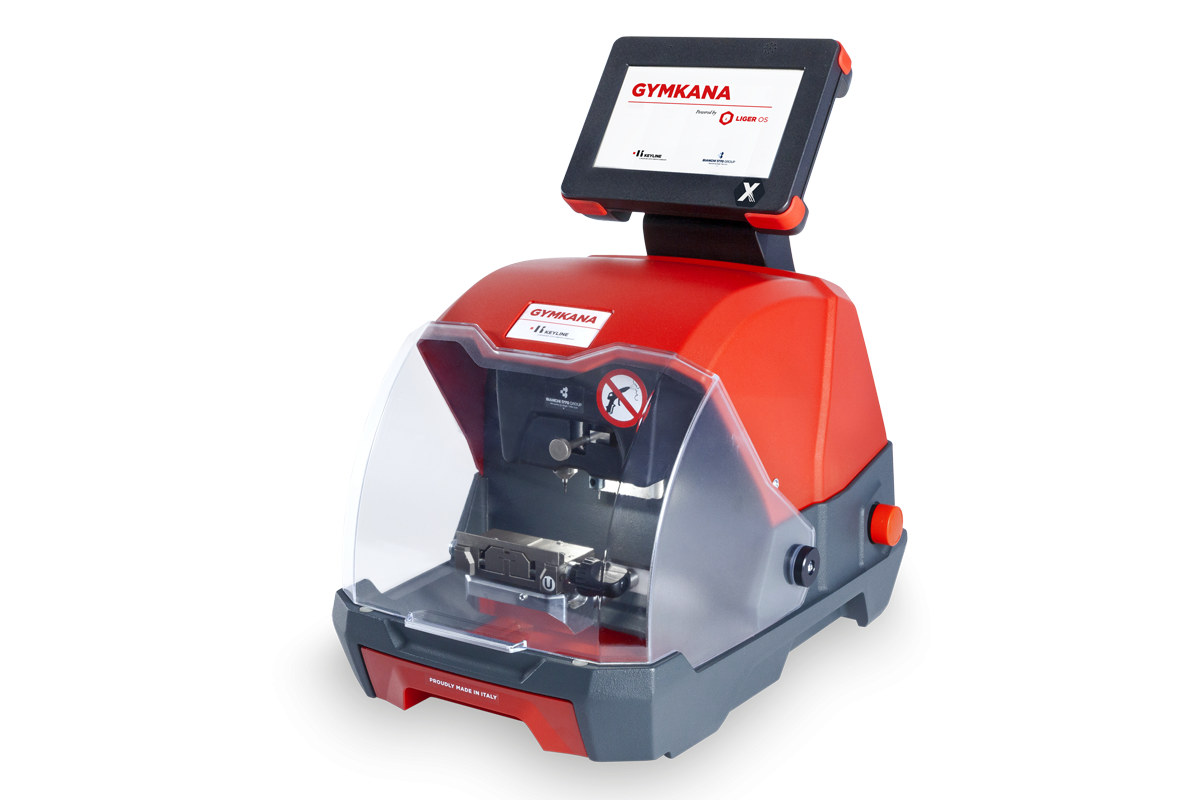

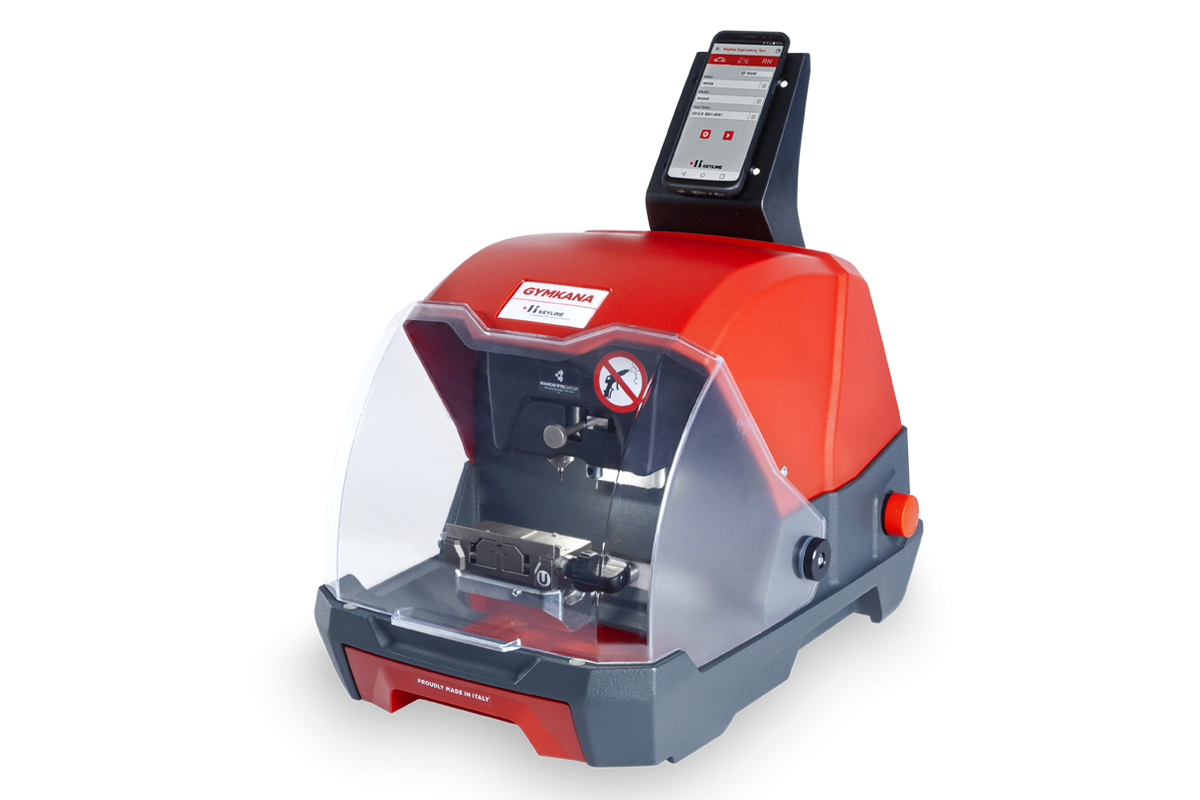

Gymkana is the new electronic key cutting machine for automotive laser and double-sided edge cut keys.

GYMKANA completely revolutionizes the daily work of automotive operators and duplication specialists. With Gymkana you can provide car key cutting service everywhere, at any time and with the utmost flexibility!

Unlimited accessibility and dynamic user interface. Thanks to its compact and ergonomic design and its external power supply, the Gymkana is easily portable and can be used in a wide variety of work situations. In addition, the fastening kit with brackets makes it possible to cut keys on the go for mobile security professionals.



Freedom of operation.  According to the user’s needs, it is possible to use the Gymkana:

  • in stand-alone configuration with the Keyline industrial console. With its powerful technology, the console can considerably reduce machine start-up times. Sturdy and suitable for all work situations, the console is operated by Keyline Liger software, which is synonymous with reliability.

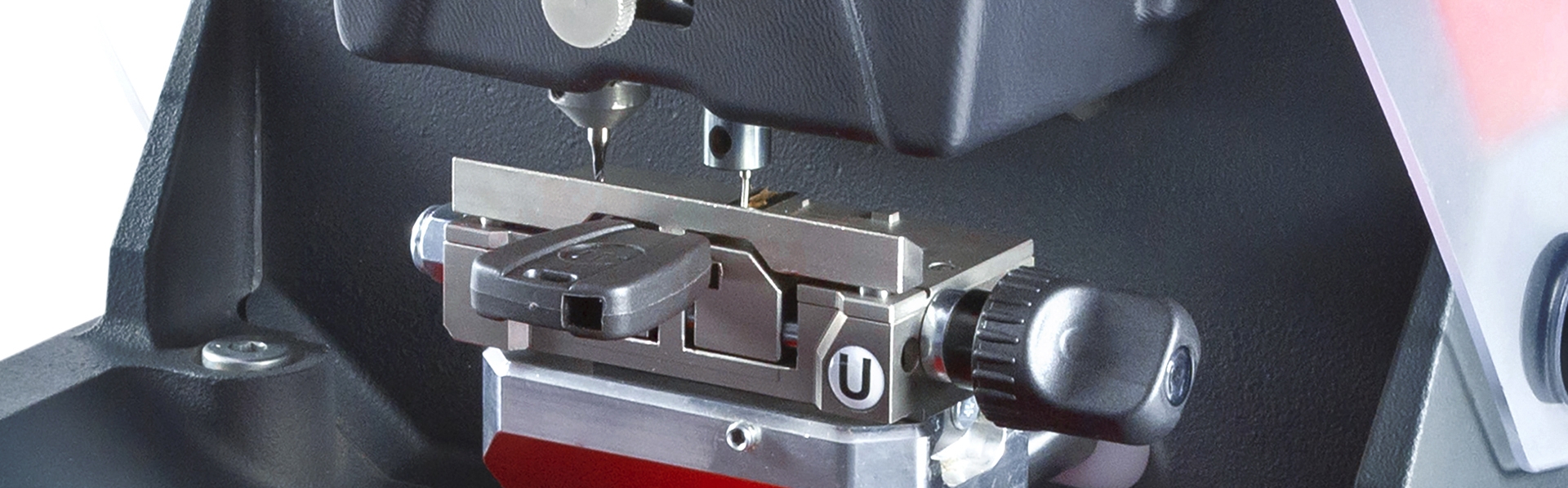

New universal self-aligning U clamp, for the majority of laser and double-sided edge cut keys. The following optional clamps are also available: V clamp for Volkswagen laser keys including the new four sided keys, H clamp for 6-cut Tibbe system and S clamp for Simplex keys.

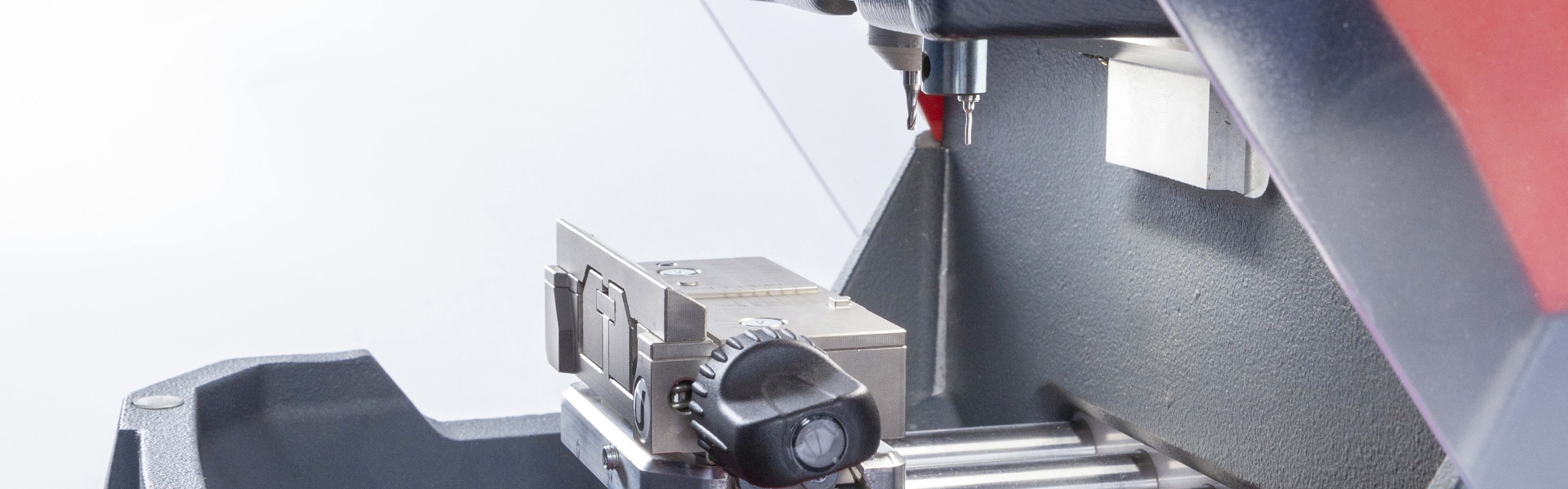

Exclusive Keyline technology and design. The wide, well-lit working area makes it possible to also cut flip keys and emergency keys easily, while the area is always kept closed and protected, to guarantee cleanliness and operating safety. The cutter speed and the axis are adjustable, to adapt to the most diverse and innovative materials. The cutter changing is now even easier, to minimize the margin of error. Everything is integrated in a durable structure that is synonymous with Keyline quality, which has always developed its products in line with the requirements of its customers.

Quality/price ratio without comparison! The careful choice of integrated technology makes it possible to offer the Gymkana at a truly competitive price. Trying is believing!



WHO IS IT DESIGNED FOR?

Gymkana is designed for:

  • all automotive operators who wish for a fast entry in the world of key cutting, thanks to a functional, dynamic and precise tool.
  • all key specialists who wish to widen their services portfolio and their offer, by working in the most diverse settings.

* A fast and reliable Internet connection is always required.

power_supply

Power supply

Machine: 48V DC - 2,5 Amp Power Pack: 90/260V AC - 50/60Hz - 160W
absorption

Absorption

120W (35W in stand-by)
external_connections

External connections

1 USB; 1 LAN
dimensions

Dimensions

Width: 12" / Depth: 18" / Height: 12"
electronic_equipment

Electronic equipment

Mainboard with iMX6 CPU, 1 GB RAM, 4 GB memory, high resolution axis control
cutter

Cutter

2.0 mm carbide cutter for laser, edge cut and Tibbe keys
lighting

Lighting

LED - lighted cutting bay
clamps

Clamps

Universal U clamp for laser and double-sided edge cut automotive keys. Optional clamps upon request: H for Tibbe Keys (6 cut), V for Volkswagen laser keys
motor

Motor

Brushless
movements

Movements/axes

3 axis, guided by stepper motors through interpolated linear moves
weight

Weight

Machine body 40 lbs. / Console 2 lbs.
key_reading

Key reading systems

Electric contact
cutter_speed

Cutter speed

3000-8000 rpm (variable speed according to the programs)

GYMKANA 994, the new automotive electronic key cutting machine.

Mr. Massimo Bianchi, Keyline’s Strategic Planner, presents Gymkana 994, the new, uncompromising automotive key cutting machine. Easy and immediate, Gymkana 994 renovates the approach to the daily work of automotive operators and duplication specialists. Visit the product page, click here.

Keyline Gymkana 994 | Decode and cut of Honda® and Mazda® keys.

Learn the procedures to decode and cut a Honda® and a Mazda® key, with Gymkana 994equipped with U clamp.

Keyline Gymkana 994 | Cut by code of Audi key. Decode and cut of Volkswagen key.

Learn the procedures to cut by code an Audi® key and to decode and cut a Volkswagen® key with Gymkana 994 equipped with V clamp.
