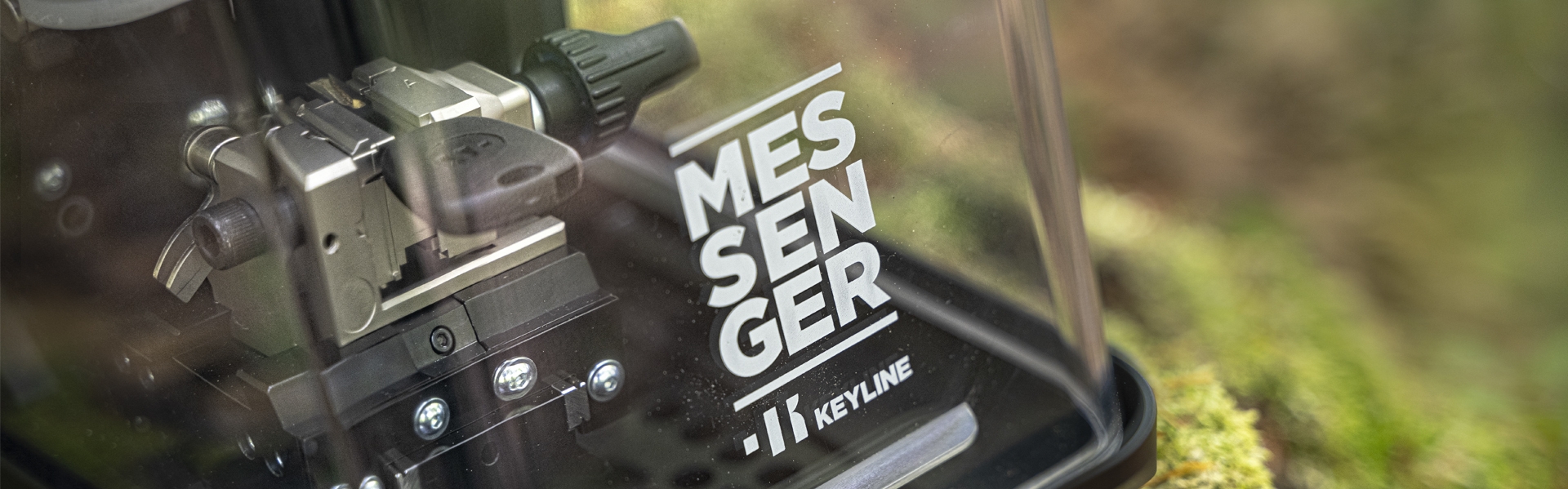

Messenger: for edge, laser and dimple keys

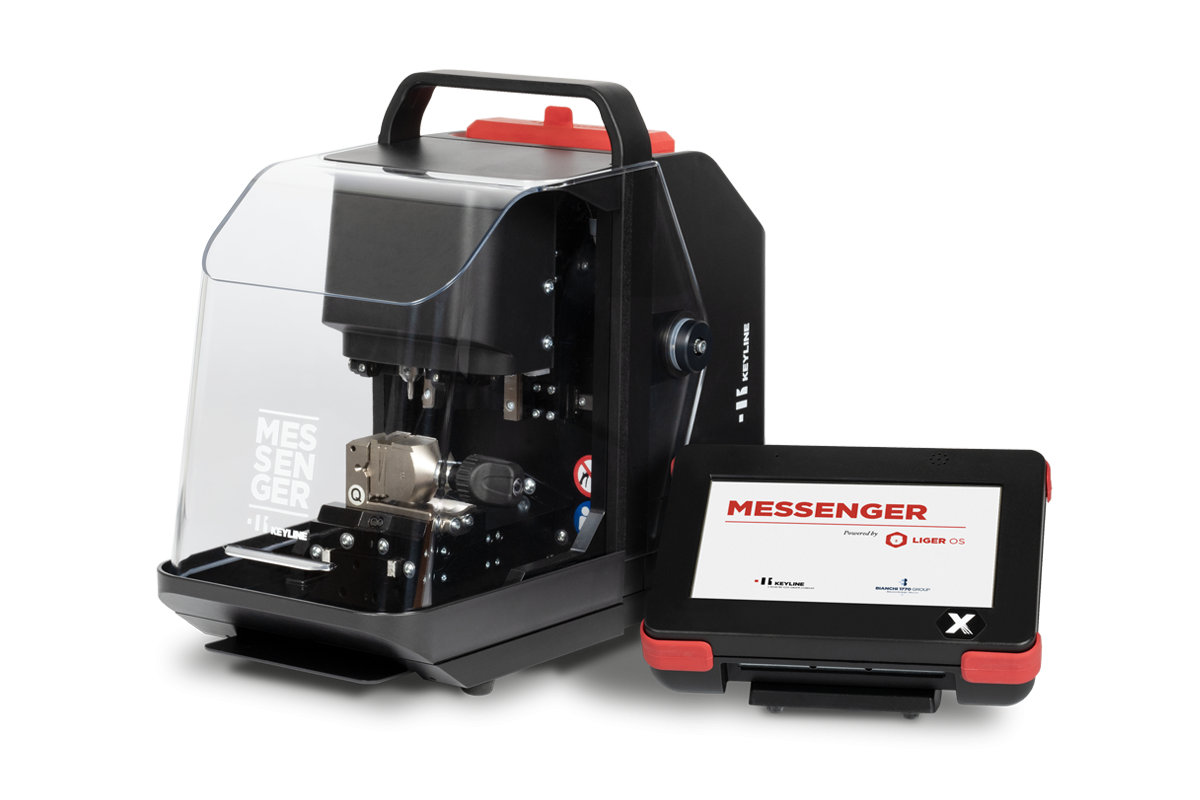

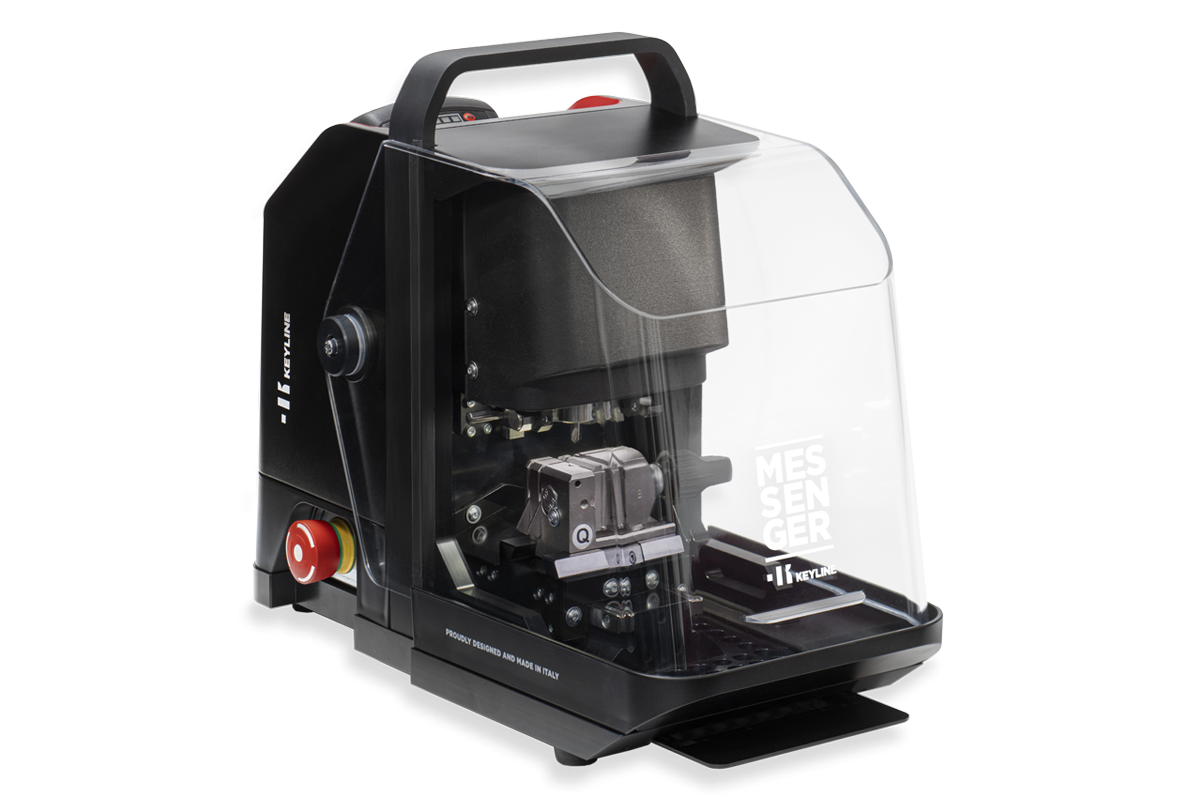

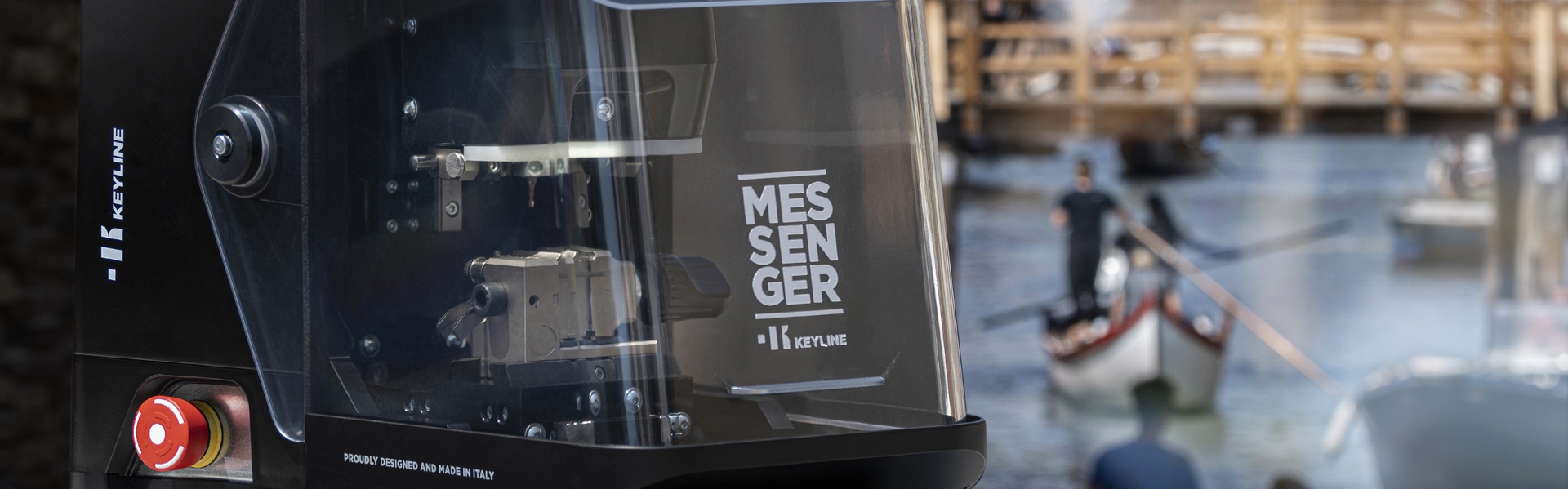

Messenger® is Keyline’s on-the-go key cutting machine for laser, edge and dimple keys. It’s a compact, weighing only twenty-two pounds and small enough to fit in any vehicle. Thanks to its lightweight design and carrying handle, it can be transported easily.

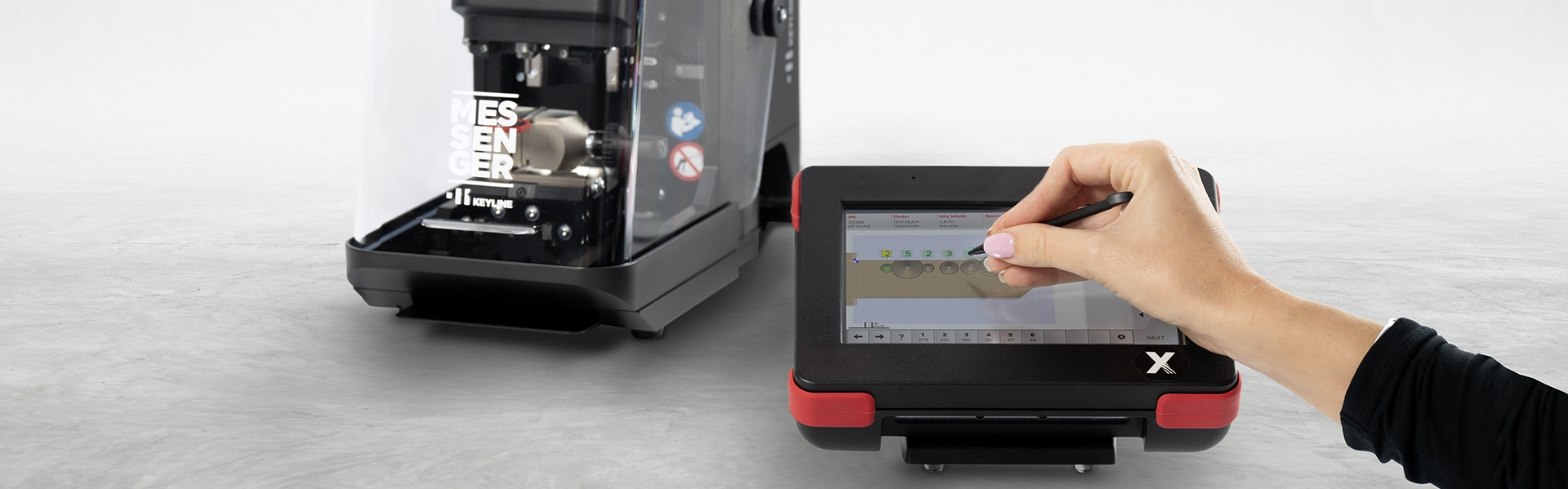

Messenger is controlled by an App, which can cut by code, decode and copy keys. Thanks to its characteristics, and because it's also battery powered, it can be used in a wide variety of work situations. With Messenger® you can provide commercial, residential, or automotive key cutting service anywhere, at any time, and with the utmost flexibility!

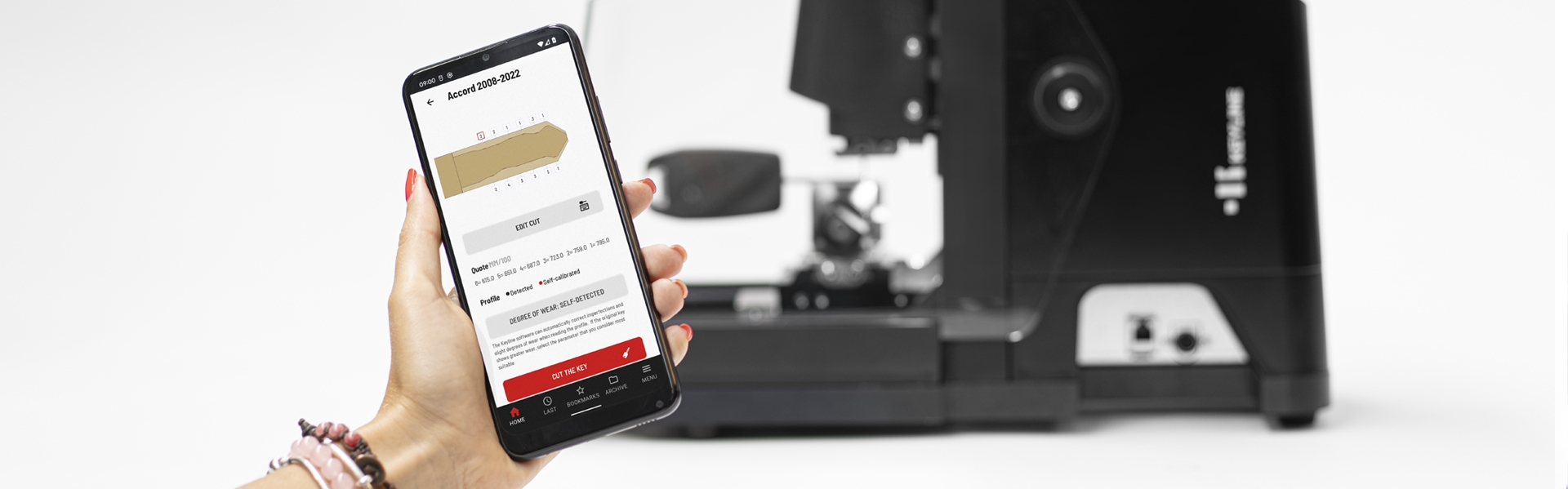

It’s very simple to use. In fact, the user can control all the machine functions through the KDT APP, using an Android smartphone or tablet. The app has many new features, a new interface and the Keyline’s extensive database of car and door keys.

The machine has been designed for everyone out there who needs to duplicate keys on-the go. Both the hardware components and the software that runs the machine are developed by the R&D Team of Keyline.

What's included?

Messenger® is provided with 2 new clamps.

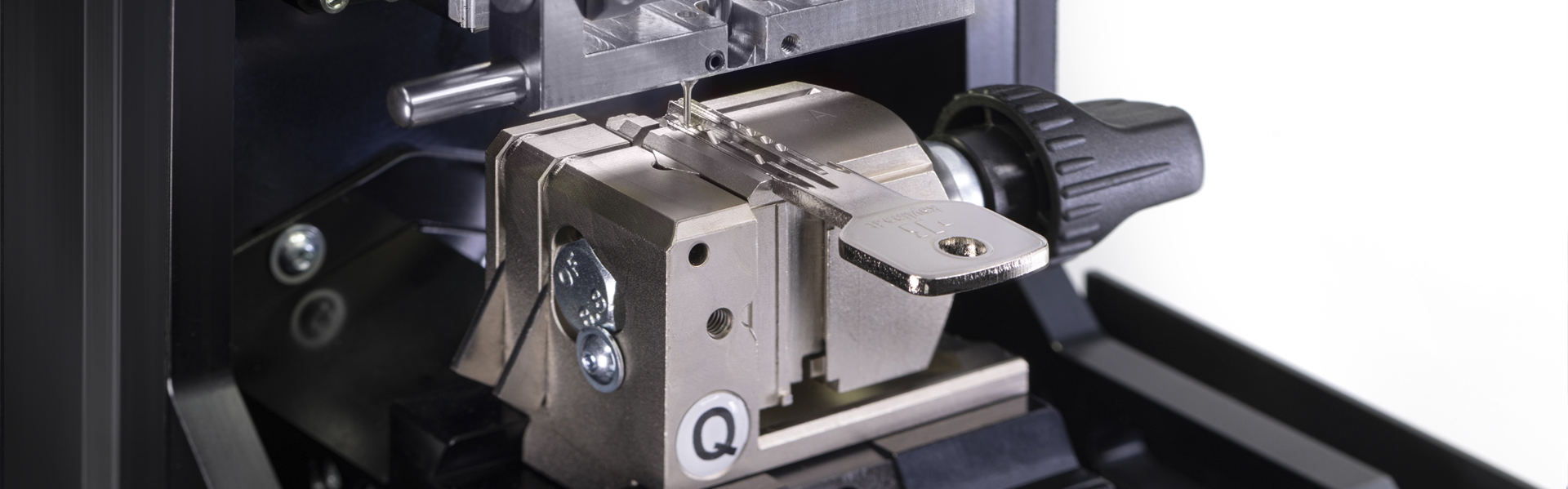

The Q clamp, for laser and dimple keys, is an innovation in the cutting of keys. With one unique clamp you can cut the main range of door keys.

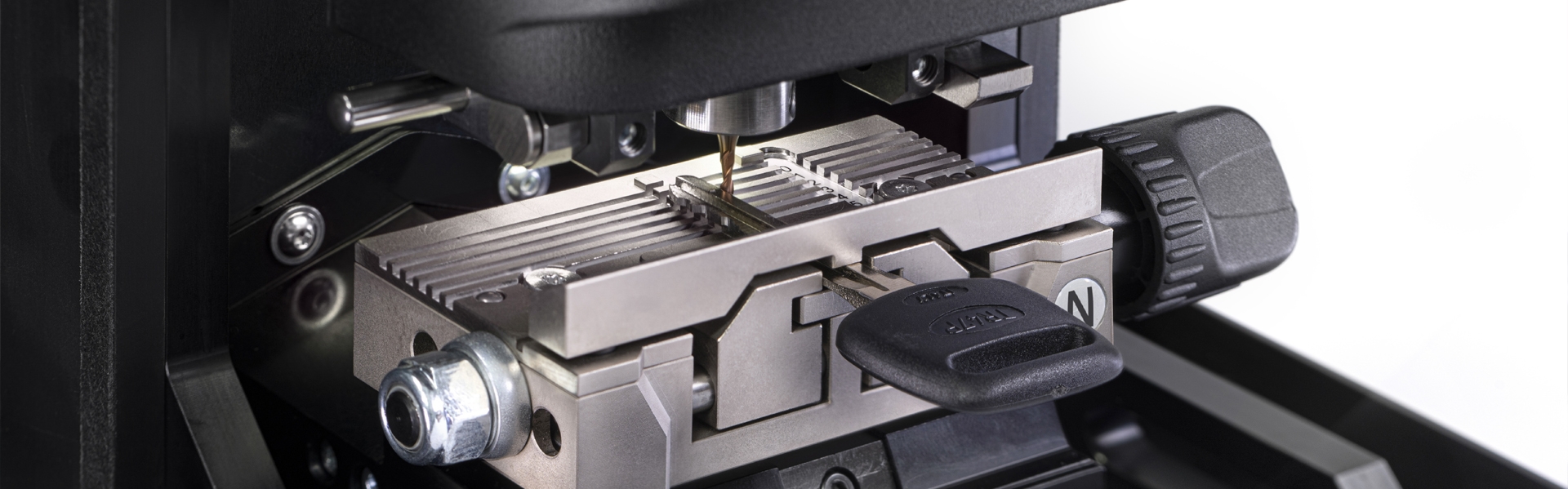

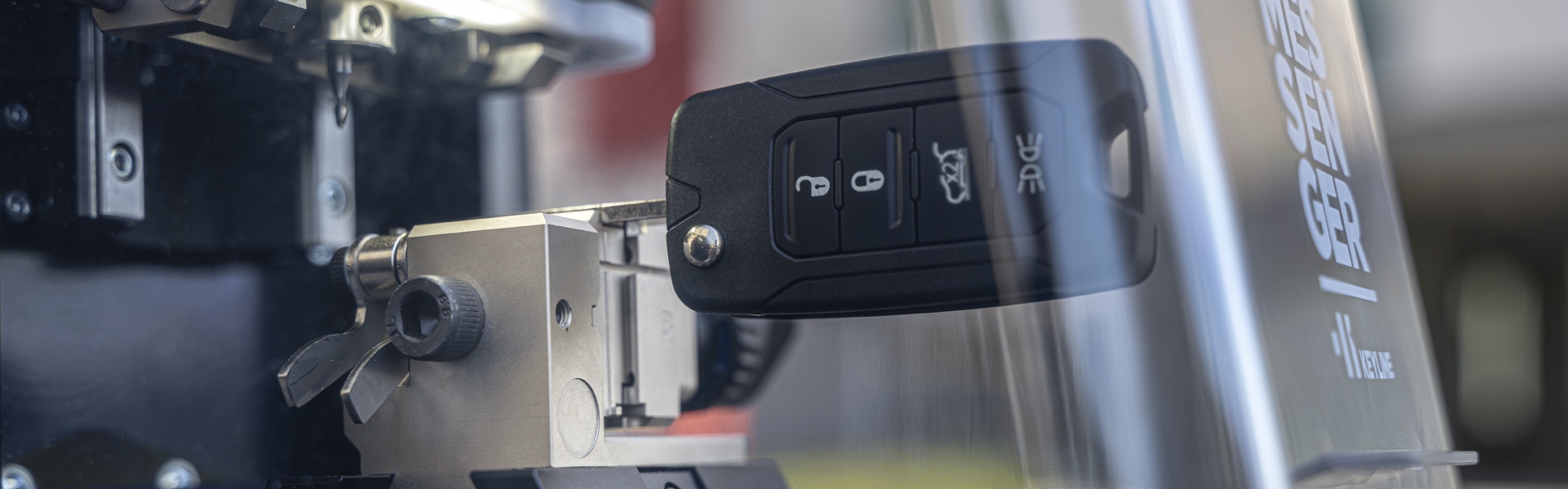

The N clamp, for edge cut automotive keys, cuts symmetrically on both sides without the need to turn the key.



power_supply

Power supply

Machine: 48V DC - 2.5 Amp or external battery power supply 36V
absorption

Absorption

120W (6W in stand-by)
external_connections

External connections

Bluetooth
dimensions

Dimensions

Width: 200 mm (7.8”) / Depth: 395 mm (15.5”) / Height: 310 mm (12.2”)
cutter

Cutter

V037 Widia ø 2.0 mm for laser and edge cut automotive key; V001 Widia 90° for dimple keys
lighting

Lighting

LED - lighted cutting bay
clamps

Clamps

Q clamp for laser and dimple keys / N clamp for edge cut automotive keys
motor

Motor

Brushless
movements

Movements/axes

3 axes, guided by stepper motors with T-shaped screw and anti-backlash nut
weight

Weight

Machine body 10 Kg (22 lbs)
key_reading

Key reading systems

Electric contact
cutter_speed

Cutter speed

10000 rpm (7500 rpm with the battery power supply); variable speed for specific materials120W (6W in stand-by)
